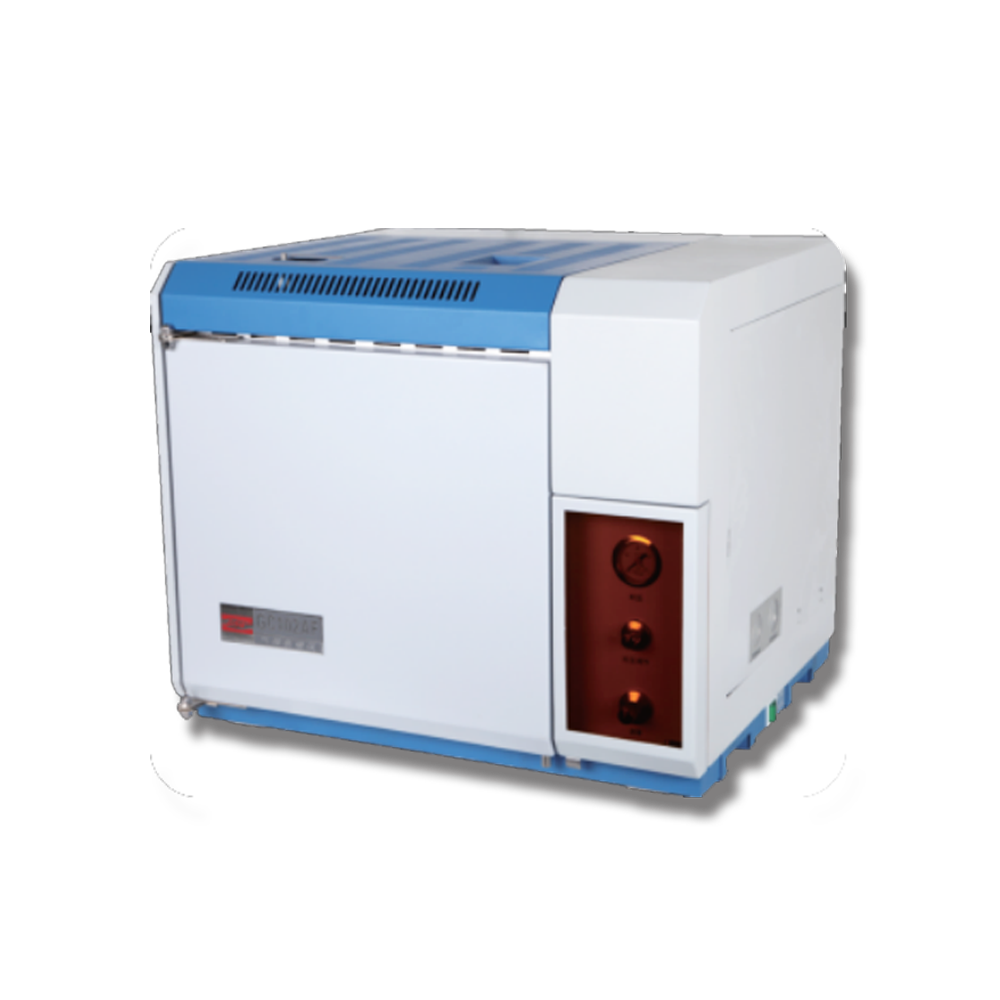

GC102AF Gas chromatograph

GC102AF Type gas chromatograph is a fully computer-based counter-controlled device that can realize remote instrument detection and fault diagnosis equipped with hydrogen flame ionization detector ( FID popular gas chromatograph.

Main features:

● completely PC The machine controls, intuitive interface and simple operation.

● High temperature control accuracy (better than ±0.1℃）The heating speed is fast and the overshoot temperature is small.

● It has functions such as self-diagnosis, power outage protection, column box over-temperature protection, etc.

● It can accurately display the set value, actual value of each channel, FID Amplifier sensitivity.

● It has a single-gas circuit system and precise scale-type gas circuit control valve parts to achieve excellent reproducibility and stability.

● Filled column: on-column injection, instantaneous vaporization injection, gas injection.

● The open microcomputer system can be used in conjunction with conventional chromatography workstations to realize data processing.

● Large capacity column box (300 mm×280mm×270mm） Easy to install filler columns.

● Integrated heating wire structure.

other:

● Power supply voltage: AC220V±22V 50Hz±1Hz

● Total power of the instrument: ≤1500W

Optional:

● Conventional chromatography workstations

Column thermostat:

● Content: 22 L

● Temperature control range: 15 at room temperature ℃ ~ 399℃

● Temperature control accuracy: ±0.1℃

Injector:

● Temperature control range: 15 at room temperature ℃ ~ 399℃

● Temperature control method: Independent temperature control

● Carrier gas flow control method: constant pressure

● Number of installations: 1

● Injection unit type: fill column

● Stigma pressure range: 0 ~ 400kpa

● Stencil pressure control accuracy: 0.1 kpa

● Flow setting range:

H2 0 ~ 200mL / min

N2 0 ~ 150mL/ min

Detector:

● Temperature control range: 15 at room temperature ℃ ~ 399℃

● Number of installations: up to 1

● Ignition function: Automatic

Hydrogen flame ionization detector ( FID）：

● Detection limit: ≤ 1×10 ^-10g / s（ n-hexadecane)

● Dynamic range: 10⁶

● RSD： ≤ 3%
