Technical Features:

Standard PC Terminal anti-control software, built-in chromatography workstation to realize PC Simultaneous bidirectional control and host touch screen are controlled by two-way.

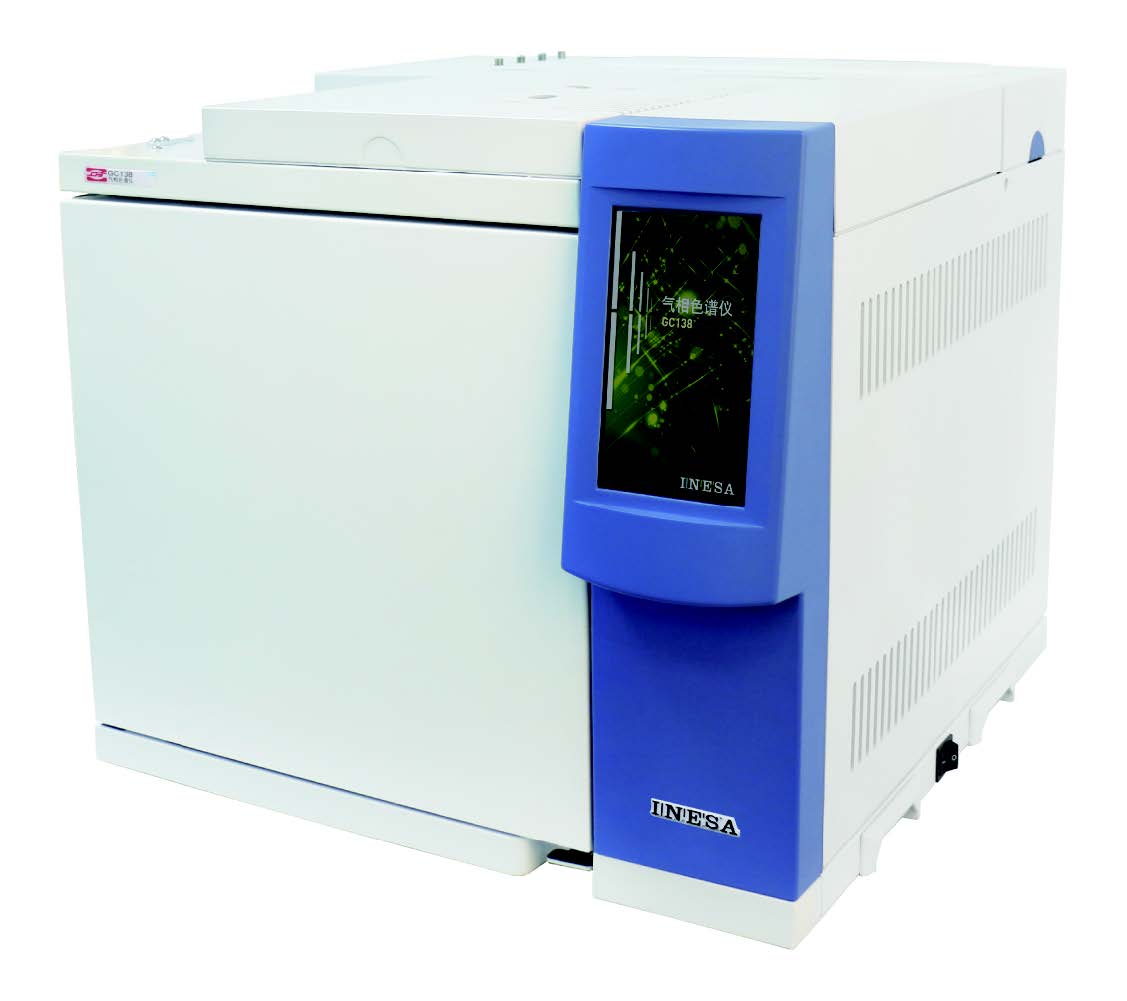

The host uses a 7-inch color touch screen, and the sampler and detection system use electronic flow /Electronic pressure control system ( EFC/EPC）。

Have air loss alarm protection function； Heating control protection function (the column box fan motor and heating system are automatically closed when opening the column box door during use).

Split flow /The shunt ratio can be automatically controlled to save carrier gas.

Configure the automatic sampler installation positioning interface to match the automatic sampler of each specification.

The user-friendly one-click start function and a multi-core 32-bit embedded hardware system ensure the reliable operation of the instrument.

Using logarithmic amplifier, the detection signal has no cutoff value, good peak shape, and can be expanded synchronized external trigger function, which can be obtained by external signals. (Automatic sampler, thermal analyzer, etc. )Start the host and workstation at the same time.

It has complete system self-test function and automatic fault identification function.

It has an extended function interface with 8 external events, and can be equipped with various functional control valves and operate in the set timing of your own.

Equipped RS232 Communication port and LAM Network port, memory call function of 20 groups of sample testing methods.

Column thermostat:

Inner size: 280 mm×31mm×160mm

Operating temperature: 4 above room temperature ℃ ~ 420℃

Temperature setpoint resolution: ±0.1℃

Maximum heating rate: 60 ℃

Maximum running time: 600 minutes

Program warming: 9th level

Room temperature changes by 1 per ℃ Changes in column temperature: ＜0.01℃

Dual-channel column bleed compensation

Heating area:

Independent heating zones that do not include column boxes: 6 (2 inlets, 2 detectors, 2 auxiliary heating zones)

Maximum temperature of auxiliary heating zone: 400 ℃

Injector:

Maximum service temperature 400 ℃

Pressure setting range: 0 ~ 700kpa

Total flow setting range: 0 ~ 200mL/min

Adapters include: φ3and φ4Filling column

Detector:

Hydrogen flame ionization detector ( FID）：

Detection limit: ≤3×10⁻¹²g /s（ n-hexadecane)

Dynamic range: 10⁵

RSD： ≤ 3%

Temperature setting: up to 420 ℃

Thermal conductivity detector ( TCD）：

Sensitivity: 5000 mV·mL / mg（ n-hexadecane)

Baseline noise: ≤ 0.05 mV

Baseline drift: ≤ 0.15 mV / 30min

Dynamic range: 10³

RSD： Less than or equal to 3%

Electronic capture detector ( ECD）：

Radioactive source: Ni63

Detection limit: ≤ 8×10^-14g / mL（r666）

Minimum detection volume: 80 fg / s

Dynamic range: 10

Temperature control range: 7 at room temperature ℃ ~ 420℃

Flame photometric detector ( FPD）：

Temperature setting: up to 350 ℃

Detection limit: ≤2×10^-12 g / s（P）

≤4×10^-11 g / s（S） Sample: Methyl parathion

Dynamic range: P 10³

Dynamic range: S 10²

Diversion /No diversion ( S/SL） Capillary column inlet:

Maximum service temperature 400 ℃

Pressure setting range: 0 ~ 700kpa

Total flow setting range: 0 ~ 200mL/min N₂
