【Product Introduction

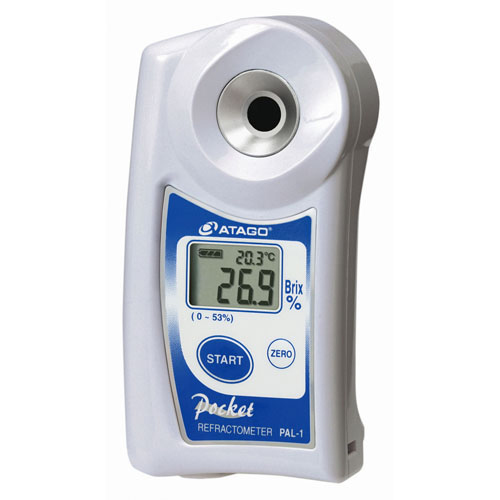

PAL-1 Portable digital refractometer, also known as digital sugar meter, digital concentration meter, fruit sugar meter, is ATAGO（ Aito) The sales champion among refractometer products! Measurement range Brix0.0 Up to 53.0%, with automatic temperature compensation function ( ATC）， Suitable for measuring the concentrations of various types of juices, foods, beverages, and certain chemicals or industrial solvents such as cutting oils, cleaning fluids and antifreeze.

【Application scope】

1、Measuring fruit Brix Value (sugar degree), helps to evaluate various indicators such as fruit picking period and fruit grading sales.

2、Measure the concentration of various beverages, juices and other liquids to help monitor quality and ensure consistency of quality.

3、Measure cutting oil or industrial solutions, antifreeze, etc., and evaluate the concentration ratio and mixing as a reference.

【Upgrade announcement]

From September 1, 2017, *PAL-1 Will bring all NFC Function, no NFC Functional PAL-1 The model will no longer be produced, please stay tuned.

*The first batch of NFC Functional PAL-1 It will arrive around the end of August 2017. If you need to order, please feel free to inquire.

PAL Other models of the series will be added one after another NFC Function.

【New and old versions】

PAL-1 During the alternation of new and old versions, inventory will be given priority to release old versions. PAL-1， It does not affect normal measurement use.

The old version of the inventory will be sold as soon as possible. If you need to know, please contact the relevant personnel of our company.

【NFC Function introduction】

It is the era of innovation in IoT automation technology. ATAGO It also adheres to the concept of keeping pace with the times and launches it NFC Function!

This feature is the first PAL-1 Implemented! ! !

No need to write a measurement record, just put the instrument close to the mobile phone or computer NFC At the receiving end, all measurement results are clear at a glance!

【Measurement method]

Drop 2-3 drops of sample to the surface of the prism →Press START key →3Displays the measured value and temperature in seconds

【Basic maintenance]

1.Prepare necessary tools: tissue, alcohol, cotton swab, clean water, etc.；

2.Clean the instrument shell first by wet with a tissue. The stubborn dirt can be wiped with alcohol.；

3.Clean the prism part with pure water；

4.Use a cotton swab to stick alcohol and then clean the prism. Be careful that one end of the cotton swab can only be wiped along the prism once. After wiping, please change to the other end and rinse it with clean water.

5.Use pure water to zero and verify that the cleaning has been completed. Only by keeping the instrument clean regularly and ensuring simple cleaning after use can the instrument be effectively extended.

【After-sales service】

1.The product will be guaranteed for one year for free from the date of purchase (except for consumable parts or human operation errors).

2.Free repair services will be provided during the warranty period for product quality issues.

（Please mail the battery used in the event of a failure together)

3.Repair fees will be charged for a fee after the warranty period.

4.The following situations are not covered by the free warranty:

①Users disassemble and assemble products without authorization.

②The damage of the prism and sample tank leads to unstable measurement values.

③Failure caused by water inlet or drop of the instrument.

④Failure caused by failure to follow the instructions, improper use or unstable use environment.

⑤Failure caused by using batteries other than standard ones.

⑥Failure caused by other force majeure factors.
