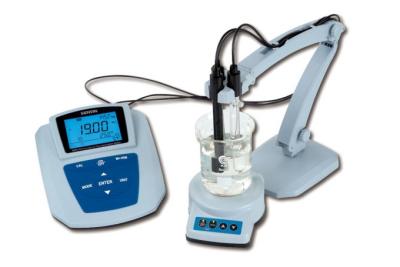

Xinrui Industry PH count PHG-20
Price：￥3800
Laboratory/Medical Field
Integrated suppliers of equipment, reagents, and consumables
Product Introduction
Comply with international standards GLP Required, automatic calibration, automatic temperature compensation, data storage, RS232 Intelligent functions such as output, clock display and function settings.
There are three different measurement modes: stable display mode； Timing measurement mode ； Continuous measurement mode.
Fluorine electrode range: 1 ～6 pF (10-1 ～10-6 mol/L)
Configuration electrodes: fluorine ion electrode, reference electrode and temperature electrode
Four ion concentration units can be switched: pX、mol/L、mg/L and ppm
The instrument has a unique product serial number
conform to IP54 Dust-proof and splash-proof grade, instrument socket is sealed with silicone cap
Technical parameters
mV | Measurement range Resolution Accuracy | -1999.9mV ~ 0 ~ 1999.9mV 0.1mV ±0.1% FS |
Fluoride ion | Measurement range Display unit Accuracy Input current Input impedance stability Temperature compensation range | Electrical meter: (0.00 ~9.00）pF； Support: (1.00 ~7.00）pF pF、mol/L、mg/L、ppm ± 0.01 pF ≤2×10-12 A ≥1×1012 Ω ±0.01 pF/3h （0 ~ 50）℃（Automatic or manual) |
temperature | Measurement range Resolution Accuracy | -10℃~ 110℃ 0.1℃ 5~ 60℃scope: ±0.5℃ Remaining range: ±1.0℃ |
Other technical parameters | Data storage Save content power supply Communication interface Size and weight Quality and safety certification | 600Group Measured value number, measured value, temperature value, ATC or MTC Status, measurement date, measurement time DC9V/300mA RS232 160 × 190 × 70mm/880g ISO9001:2008, CE and CMC |
Working conditions | Ambient temperature Ambient humidity IP grade | 5 ~ 35 ℃ ≤85% IP54 Dust-proof and splash-proof |
