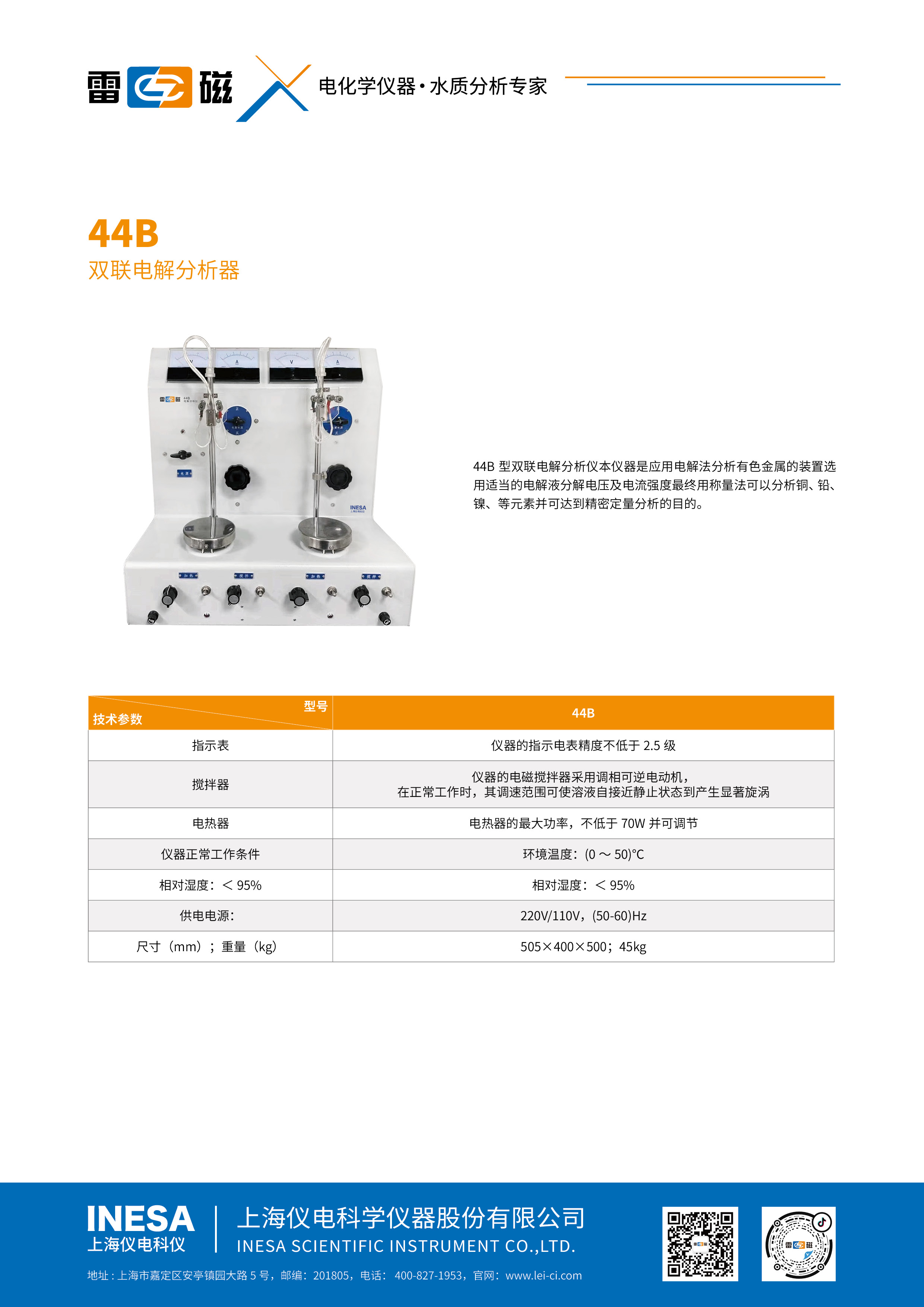

This instrument is a complete set of devices that use electrolysis to analyze non-ferrous metals. Selecting appropriate electrolytic solution, current intensity or decomposition voltage can analyze elements such as copper, lead, nickel, tin, zinc, etc., and achieve the purpose of precise quantitative analysis. Level 2.5 accuracy

Technical parameters:
1. Air temperature 0 ～50℃;Air humidity ≤95％;power supply AC220V/110V Frequency 50 Hz
2．Agitator: The electromagnetic stirrer of the instrument uses a phase-regulating reversible motor device. During normal operation, the speed regulation range can cause the solution to significantly generate vortex from near-stagnation.
3．Electric heater: The maximum power of the electric heater is not less than 70 W And adjustable.
4．Line insulation: The electrical circuit of the instrument's ground insulation resistance is not less than 20 MΩ。
5．Instrument shape and weight: Width ×deep ×high ＝505×400×500mm。 About 40 kg.
6．Power consumption: Maximum 450 W。

Maximum electrolytic current can reach 8 A， Minimum is about 0.2 A
