JPBJ-609L It is a new generation of intelligent high-end portable oxygen dissolving instrument. The instrument adopts a 4.3-inch color touch screen, with a new appearance design ； Intelligent operating system, supports zero oxygen and full-scale calibration, supports automatic compensation of atmospheric pressure, supports multiple reading methods, and supports data management functions ； At the same time, it uses lithium batteries to power, which greatly extends the use time of the instrument and facilitates users to use it on site.

【Main features】

Use 4.3 inches TFT Touch screen, new UI Design, navigational operation experience, support sliding operation；

Supports measurement of dissolved oxygen concentration, dissolved oxygen saturation, dissolved oxygen current and temperature values；

Intelligent operating system with functions such as method management, electrode management, calibration management, data management and user management；

Support electrode management, up to 5 dissolved oxygen electrodes can be managed, each electrode can save 20 sets of correction records.；

Supports zero oxygen and fullness correction, supports automatic compensation of atmospheric pressure and temperature；

3Reading mode: Smart-Read：“ Fast, medium and strict, customize" multiple balance conditions to choose from； Timed-Read： Two timing reading modes: timing termination measurement and timing automatic interval measurement.； Cont-Read： Clearly grasp the continuous change process of the sample；

Supports storage of up to 50 sets of measurement methods； Support storage of dissolved oxygen and saturation measurement results, which meets the requirements of GLP specification； Supports multiple reference methods, and can check storage data according to storage number and storage time, and the reference results are displayed in a curved manner. ；

Supports two operating languages in Chinese and English；

support USB connect PC； Support firmware upgrade function.

【Technical parameters]

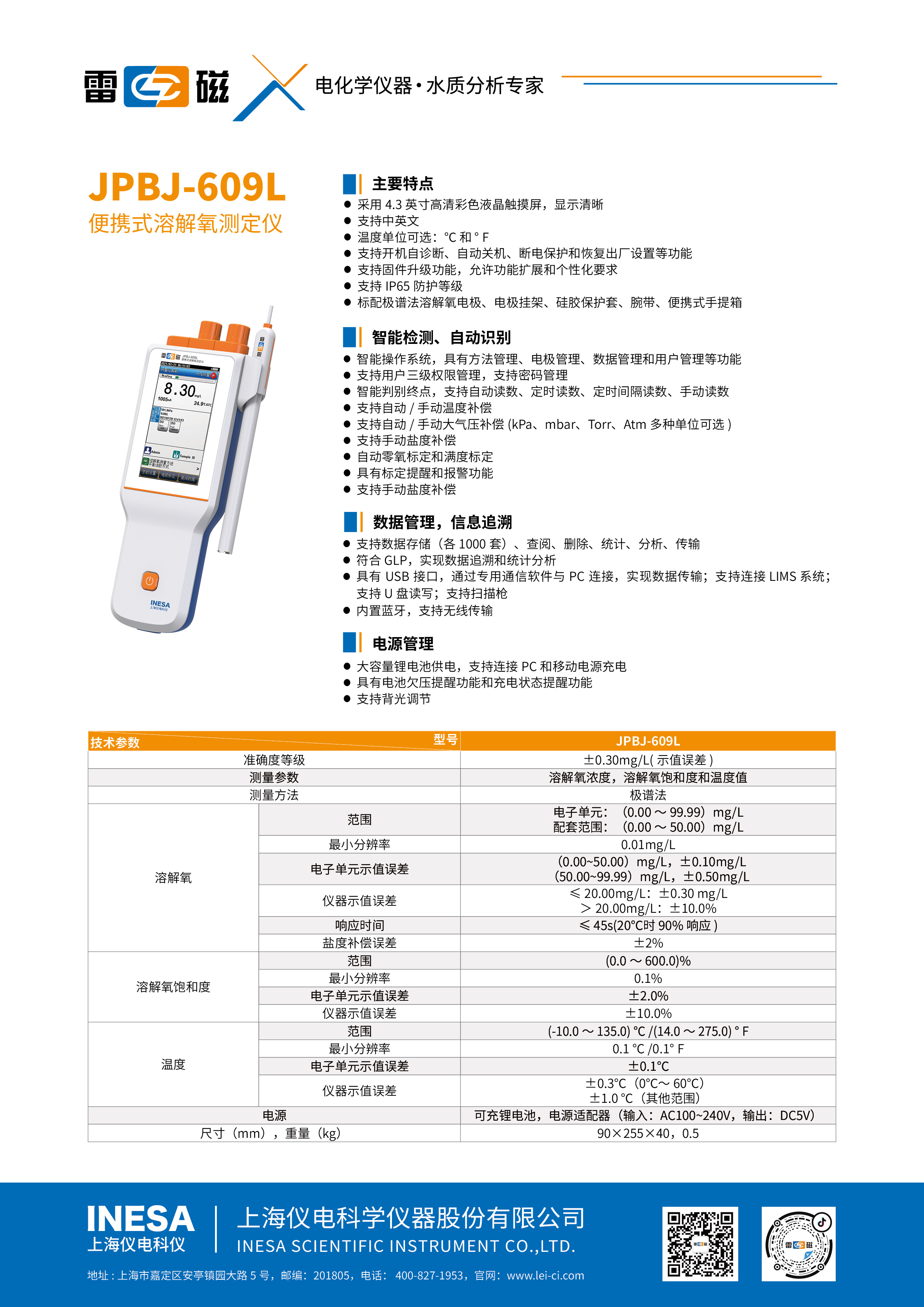

JPBJ-609L Portable dissolved oxygen detector
