Shanghai Lei Magnetic Portable Dissolved Oxygen Detector JPBJ-608_Dissolved Oxygen Meter

Dissolved Oxygen Meter

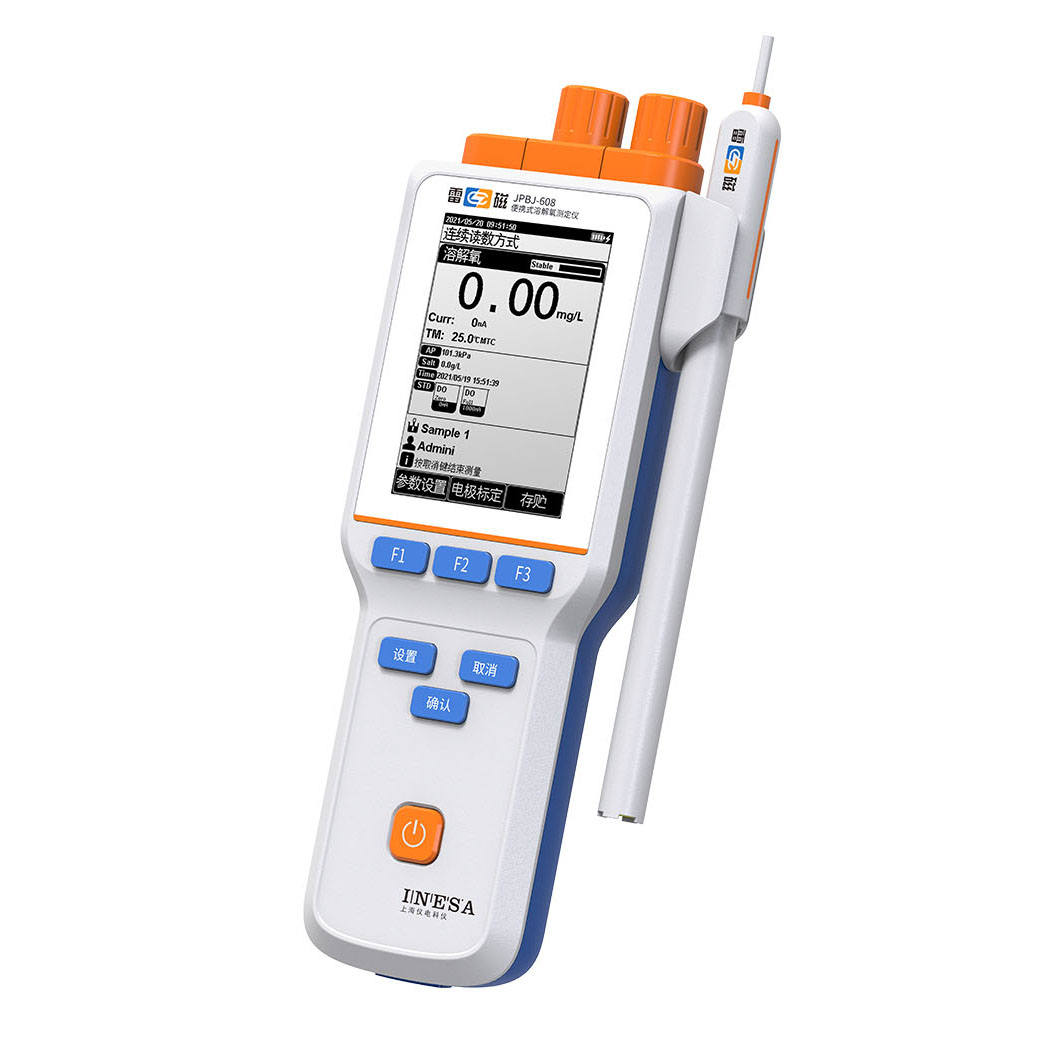

Shanghai Lei Magnetic Portable Dissolved Oxygen Detector JPBJ-608

Price：￥4280

WeChat

Brand：lei-ci
Model：JPBJ-608
Inventory Status：Spot promotion/please call for consultation

Contact：: Tel：+86 010-51660436
Email：dnyc_sales@163.com

Details Documentation Related

【Main features】

Liquid crystal display can measure dissolved oxygen concentration, dissolved oxygen saturation and temperature;

Supports zero oxygen and full-scale calibration, automatic temperature compensation； Supports air pressure calibration and salinity calibration;

It has data management functions, supports data storage, deletion and review, with a maximum storage capacity of 500 sets;

Has standard RS-232 Communication interface and REXDC1.1 Data collection software, which can communicate with computers;

It has power management functions such as data power outage protection and automatic shutdown;

IP65 Protection level, suitable for field operations.

【Technical parameters]

model Technical parameters		JPBJ-608
Measurement parameters		Concentration, saturation, temperature
Measurement range	Dissolved oxygen	(0.00～19.99)mg/L
	Dissolved oxygen saturation	(0.0～199.9)%
	temperature	（0.0～40.0）℃
Basic error	Dissolved oxygen	±0.50mg/L
	Dissolved oxygen saturation	±10%FS
	temperature	±0.5℃
stability		(±0.10mg/L)/3h
Response time		≤45s（20℃90% response)
Residual current		≤0.10mg/L
power supply		4No. 5 alkaline battery
size (mm)，weight (kg)		210×86×50，0.5
Standard electrodes and reagents		DO-958-BF Type dissolved oxygen electrode

JPBJ-608 Portable dissolved oxygen detector

Serial number

Name and specifications

quantity

JPBJ-608 Portable dissolved oxygen detector

DO-958-BF Type dissolved oxygen electrode

AA 1.5V No. 5 alkaline battery

Electrode fixing frame

TP－16Printer connection

RS-232 Communication line

REX Data acquisition software CD

Instructions for use

Product Certificate

1tower

1branch

4Festival

1Only

1root

1plate

1Book

1share

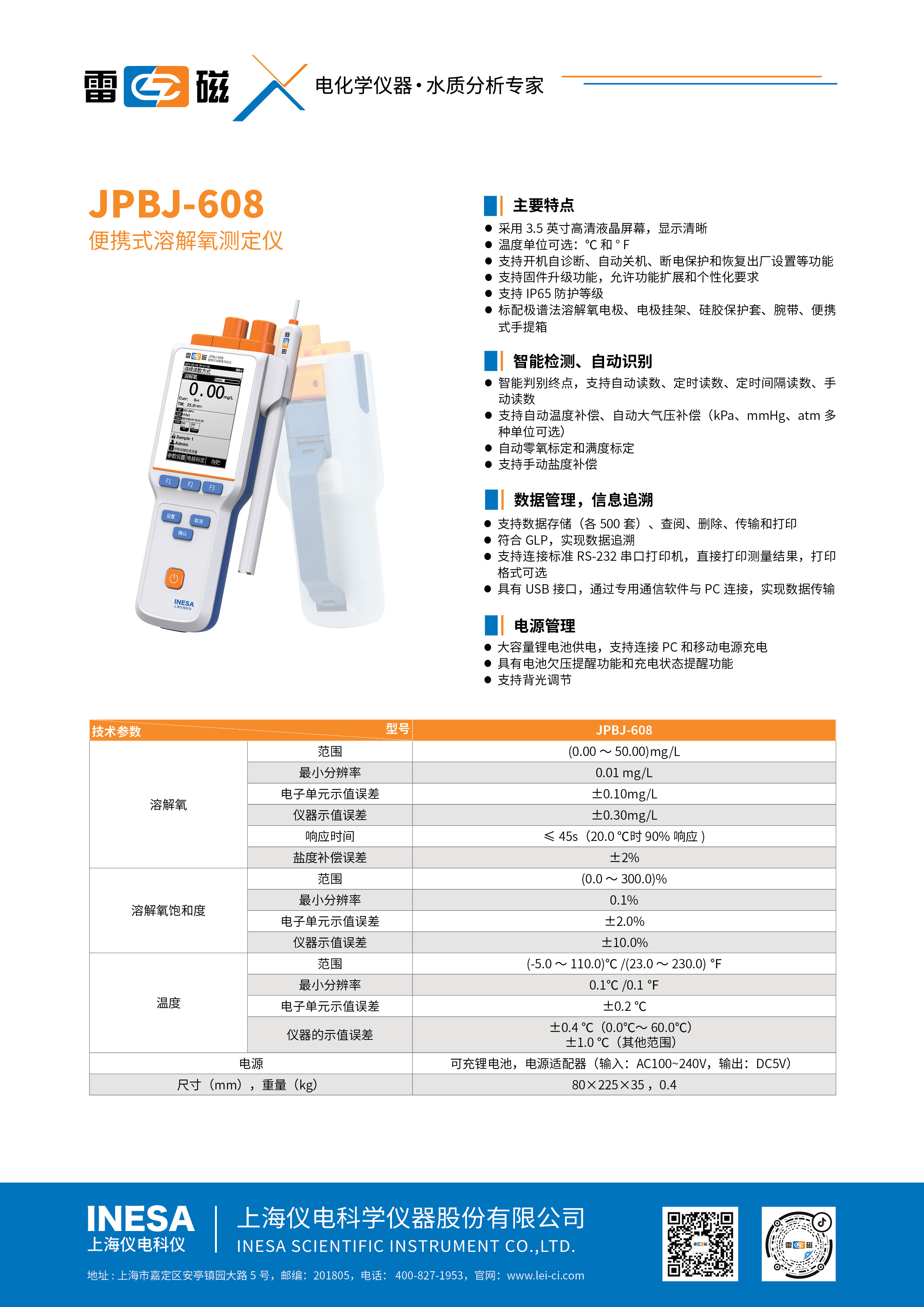

Product Brochure

User Guide

Packing List

Product Sheet
