Shanghai Yiheng Pharmaceutical Stability Test Kit LHH-1000SDP_Pharmaceutical Stability Test Chamber

Pharmaceutical Stability Test Chamber

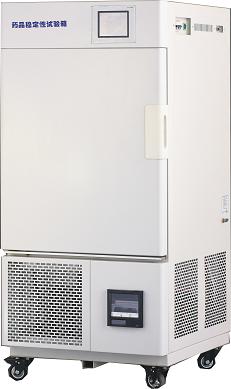

Shanghai Yiheng Pharmaceutical Stability Test Kit LHH-1000SDP

Price：￥98700

WeChat

Brand：yiheng
Model：LHH-1000SDP
Inventory Status：Spot promotion/please call for consultation

Contact：: Tel：+86 010-51660436
Email：dnyc_sales@163.com

Details Documentation Related

Instrument introduction:

Usage overview:

Using scientific methods to create a temperature, humidity and light environment that requires a long-term stable evaluation of drug failure. It is suitable for accelerated tests, long-term tests, high humidity tests and strong light irradiation tests by pharmaceutical companies. It is the best choice for pharmaceutical companies to conduct drug stability tests.

Features:

● New fluorine-free design, high efficiency, low energy consumption and promotes energy saving.

● It adopts a special sterilization stainless steel inner liner with four corner semicircular arc design, easy to clean and easy to operate.

● Microcomputer servo controller, digital temperature and humidity display. (SD/GSD Have this function )

● The LCD touch screen controller, all functions are displayed in graphics and text on the screen, and can observe the operating status of the machine in a curve chart. (SDP/GSP Have this function )。

● Continuous operation guarantee: two sets of imported fully enclosed compressor units automatically switch to ensure continuous operation of the equipment.

● There is no need to defrost during continuous operation, avoiding the temperature and humidity fluctuations in the box during use.

● Use imported humidity sensors to avoid the troubles caused by frequent replacement of wet bands of traditional dry and wet ball sensors.

● GSD/GSP The series has illuminance indefinite adjustment function.

Programmable touch screen controller (Reference SDP/GSP series )

Safety features:

● When the box door is opened, the breeze circulation and heating will stop automatically, without the disadvantage of temperature overshoot.

● The speed of the circulating fan is automatically controlled to avoid sample volatility caused by excessive wind speed.

● Independent temperature limit alarm system, it can prompt the operator with sound and light alarm.

● Temperature deviation alarm, compressor overheating, overload, overpressure protection and water shortage protection.

● Wired monitoring alarm system ( SDP/GSP The series has this feature).

Provide 3 Q Verification and calibration services

Technical parameters:

Large drug stability test chamber

model	LHH-500SD LHH-500SDP	LHH-800SD LHH-800SDP	LHH-1000SD LHH-1000SDP	LHH-1500SD LHH-1500SDP
Temperature control range	0～65℃
Temperature fluctuation /Uniformity	±0.5℃/±2℃
Humidity range /deviation	25～90%RH/±3%RH
illumination	none
Refrigeration system	Two sets of imported independent original imported fully enclosed compressors automatically switch
Controller	SD Series: Programmable LCD controller SDP Series: Programmable touch screen controller
sensor	temperature: Pt100 Platinum resistance, humidity: capacitive humidity sensor
Working ambient temperature	RT+5～30℃
power supply	AC220V 50HZ	AC380V 50HZ
Volume	500L	800L	1000L	1500L
Inner liner size (mm) W×D×H	800×700×900	965×580×1430	900×580×1600	1410×800×1500
External dimensions (mm) W×D×H	1000×1100×1860	1475×890×1780	1410×890×1950	1570×1475×2050
Carrying tray (Standard )	4piece
Safety devices	Compressor overheating protection, fan overheating protection, overheating protection, compressor overheating protection, overload protection, water shortage protection, wired monitoring and alarm system
Remark	1、SD、SDP、GSD、GSP Series, equipped with embedded printers standard. 2、A high-precision digital recorder is optional. 3、Comprehensive drug stability test chamber is equipped with a light illuminance monitor. 4、GSD/GSP Two-layer lighter optional.

Large comprehensive drug stability test chamber (high light)

model	LHH-500GSD LHH-500GSP	LHH-800GSD LHH-800GSP	LHH-1000GSD LHH-1000GSP LHH-1500GSP
Temperature control range	No light: 0 ～65℃ Light: 10 ～50℃
Temperature fluctuation /Uniformity	±0.5℃/±2℃
Humidity range /deviation	25～90%RH/±3%RH
illumination	0-6000LX Adjustable ≤500LX
Refrigeration system	Two sets of imported independent original imported fully enclosed compressors automatically switch
Controller	GSD Series: Programmable LCD controller GSP Series: Programmable touch screen controller
sensor	temperature: Pt100 Platinum resistance, humidity: capacitive humidity sensor
Working ambient temperature	RT+5～30℃
power supply	AC380V 50HZ
Volume	500L	800L	1000L 1500L
Inner liner size (mm)W×D×H	800×700×900	965×580×1430	900×580×1600 1410×800×1500
External dimensions (mm)W×D×H	1000×1100×1860	1475×890×1780	1410×890×1950 1570×1475×2050
Carrying tray (Standard )	4piece
Safety devices	Compressor overheating protection, fan overheating protection, overheating protection, compressor overheating protection, overload protection, water shortage protection, wired monitoring and alarm system
Remark	1、SD、SDP、GSD、GSP Series, equipped with embedded printers standard. 2、A high-precision digital recorder is optional. 3、Comprehensive drug stability test chamber is equipped with a light illuminance monitor. 4、GSD/GSP Optional 2- to 3-layer lighters.
