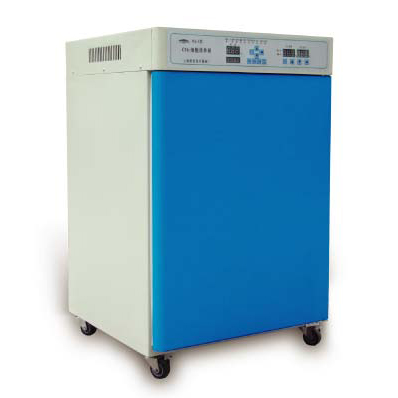

Adaptation range

This product is suitable for research in a wide range of fields such as cell biology, oncology, genetics, immunology, virus research cytology and modern genetic engineering research. It is an ideal device for scientific research units and industrial production departments such as modern medicine, pharmaceutical industry, biochemistry and agricultural science to carry out cell, tissue and bacteria cultivation. This product is suitable for research in a wide range of fields such as cell biology, oncology, genetics, immunology, virus research cytology and modern genetic engineering research. It is an ideal device for scientific research units and industrial production departments such as modern medicine, pharmaceutical industry, biochemistry and agricultural science to carry out cell, tissue and bacteria cultivation.

Structural features:

●The heat insulation is adopted by water jacket and high-quality insulation materials. The inner liner is equipped with air ducts and is equipped with a fan to form forced convection, which improves the temperature uniformity in the box and CO2 Concentration equality.

● CO2 The inspection uses imported first-class infrared waveguide patents and gold-plated probes. Ensure the accuracy of the measurement data, and the sensor life can reach more than 15 years.

● Indoor CO2 The concentration can be at (0 ～20）％Arbitrarily set within the range, and an internal circulation gas filtration device is adopted to prevent pollution and reduce impurities in the gas CO2 Concentration effect. Improve measurement accuracy and cleanliness in the studio. ● When the box door is opened, the fan will be automatically closed and CO2 Intake valve and stop heating of the water tank. Save CO2 Use gas volume and isolate it from the outside world to reduce pollution caused by air ingress. (In order to reduce the temperature flush in the box, 10 after closing the door min Start heating left and right).

● Temperature and CO2 Concentration using microcomputer data analysis and intelligence PID High control accuracy and strong anti-interference ability. Among them, the temperature control uses three probes to control the box temperature, water temperature and door temperature respectively, so that the studio temperature accuracy is high and the fluctuates less.

● Light touch adjustment switch, lightweight and flexible.

● Independent door temperature control reduces the impact of external temperature changes on the studio constant temperature system and prevents frosting of glass doors. ● Natural evaporation and humidification will keep the work room well.

●In-box temperature, CO2 The concentration and the set parameters are displayed digitally. Door heating, water heating, CO2 Air intake, high water level, water shortage, etc. LED The instructions are intuitive and clear.

● It has various protection functions such as overtemperature, water shortage, and air cutoff to ensure the safe operation of the equipment.

Technical parameters:

(1) Temperature range Room temperature +5℃To 60 ℃。

(2) Temperature uniformity       ≤±0.3 ℃

(3) Temperature fluctuation       ≤±0.2 ℃

(4) humidity  ≥85%RH

(5) Humidification method: Water is added to the humidification dish and evaporate naturally

(6) Heating method

Water cover type: four-sided water cover type heating method

Air sleeve type: two-sided heating method

(7) Carbon dioxide concentration control range 0 ~20%

(8) Carbon dioxide concentration fluctuation  WJ3 type: ≤±0.1 %

(9) Carbon dioxide concentration control method

WJ2 Type: air-coupling type +Flow control

WJ3 Type: Gas replacement type +Infrared carbon dioxide concentration sensor +Solenoid valve start and stop method

 two. Temperature controller:

Featured Description

(1) Temperature sensor

Water jacket type: Temperature: DIN A class Φ5mm SUS Made of stainless steel PT 100?×3 branch.

               Box temperature control ×1branch ； Water temperature control ×1branch ； Door temperature control ×1branch

Air sleeve type: Temperature: DIN A class Φ5mm SUS Made of stainless steel PT 100?×2 branch.

               Box temperature control ×1branch ； Door temperature control ×1branch

(2) Temperature control method    P.I.D Automatic calculation + Fuzzy control.

(3) Temperature conversion: linear compensation correction for microcomputer.

(4) Display interface   LED Digital tube display, English display, key input method.

(5) Timing range 1.1 ~9999minute ； 2. No timing continuous operation

(6) Humanized operation

     a. Automatic control Temperature and electric heating output power adjustment, P.I.D Calculus control…etc.

     b. Safety self-test The safety self-test of the main system components, when an abnormality occurs, the status is indicated by the controller and the heating is stopped.

     c. Water level detection Probe-type water level detection, which shows that heating does not start when the water level is low.

Main functions

(1) Temperature display accuracy 0.1 ℃ 。

(2) The concentration display accuracy is 0.1%.

(3) Temperature control accuracy    ± 0.1℃ 。

(4) Concentration control accuracy    ± 0.1% 。

(5) Deviation value correction Temperature deviation value compensation and correction function.

(6) I/O Self-test Safety self-test function, automatic power outage protection and fault indication when abnormality occurs.

(7) Automatic calculation Microcomputer automatic calculation P.I.D. ， Combined with solid state relay power control, temperature control is more accurate (proportional, integral, differential ＋Solid-state relay control method )。

(8) The upper and lower limits of temperature protection can be set.

(9) Protection device: The controller monitors the safety protection system and preventive fault self-test control.

three. Structure and material:

(1) Inner box material   SUS-304 Stainless steel mirror panel.

(2) External material   SPCC Cold-rolled steel plate electrostatic powder paint treatment.

(3) Insulation material: high-density polystyrene foam and ultrafine glass fiber wool.

(4) Box Door

     a. Inner door Tempered glass inner door.

     b. Inner door anti-condenser door heating radiation method

     c. Opening direction: Single door design, opening method from left to right.

(5) Movement and support The pulley moves to adjust the placement position, and the front wheel can be locked to a fixed position *4Only (200kg/ wheel )。

(6) Shelf Stainless steel bar grating shelf ( WJ-3)×2 piece,( WJ-3-160/270)×3piece ； Each floor can be adjusted in height of 50 ㎜。

Four. Temperature electric heating and circulation:

(1) Air supply method: High impedance motor axial flow fan. The air supply method is a horizontal air outlet arc cycle design.

(2) Heating system Microcomputer intelligent automatic control electric heating power balance temperature regulation +Temperature self-protection heater.

five. Safety protection device:

(1) Circuit Breaker Small switch circuit breaker.

(2) Controller internal protection

     a. Temperature sensor is open or short circuit (Overrange )。

     b. Overtemperature protection The high temperature protection setting of the set temperature.

     c. Water level detection Probe-type water level detection, heating is not started when the water level is low.

     c. Carbon dioxide concentration Carbon dioxide concentration alarm

(3) External fault detection protection

     a. Electric heating protection Heater temperature self-protector.

(4) Fault abnormality alarm When a fault abnormality occurs, the power and thermal protection will be automatically cut off and an alarm sound will be issued.

six. appendix:

（1）.Including product instruction manual, simple troubleshooting instructions, product maintenance instructions ×1。

（2）.fuse ×1

（3）.Humidification water tray ×1

（4）.Certificate of conformity ×1

seven. Power supply: 1 Ø 220V 50Hz

eight. Carbon dioxide gas supply requirements: gas purity 99.9% 0.5 Mpa  Continuous gas supply.

Nine. Ambient environment: Ambient temperature range that can be used: 5 ~32 ℃ ，Ambient temperature range for optimal performance: 15 ~30 ℃。
