A new generation BPN The series carbon dioxide incubator is original HH·CP The upgraded product of the series of carbon dioxide incubators. The company has been developing and manufacturing experience in this field for nearly 20 years. It is guided by the needs of users, constantly researching new technologies and applying them to products, using infrared CO2 Sensors control accurate temperature and are not affected by temperature and humidity.

◆Humanized design

● Stackable (Second floor )，Easy to make full use of laboratory space, microcomputer controller, precise and reliable control. It uses stainless steel inner liner and shelf, and the four corner semi-circular arc transitions. The shelf bracket can be loaded and unloaded freely, making it easy to clean the studio.

Infrared sensor

infrared( IR)The sensor has the characteristics of monitoring the speed of carbon dioxide gas and is not affected by external temperature and humidity fluctuations. Even if multiple people use it, they need to open and close the door frequently. CO2 Stable and uniform concentration. Thermal conduction sensor is easily affected by temperature and humidity, and has a long response time and large detection errors. If used for a long time, it requires frequent calibration and other defects.

◆Microbial high-efficiency filter

● CO 2 The air inlet is equipped with high-efficiency microbial filter for diameters greater than or equal to 0.3 μ m The filtration efficiency of particles is as high as 99.99%, effective filtration CO2 Bacteria and dust particles in the gas.

◆Automatic control of circulating fan speed

● The speed of the circulating fan can be automatically controlled. When the temperature in the box is in a constant temperature state, the speed will decrease, and the circulating wind speed will be adjusted to a wind speed suitable for cell growth, avoiding the volatility of the sample due to excessive air volume during the test.

◆Door temperature heating system

● The incubator door can heat the inner glass door, which can effectively prevent the glass door from producing condensation water and prevent the possibility of microbial contamination due to the condensation water of the glass door.

◆Safety features

● Independent temperature limit alarm system (optional) to ensure safe operation of the experiment without accidents.

● Low temperature, high temperature, overtemperature alarm and long door opening time.

◆UV sterilization system

● The ultraviolet sterilization lamp is located on the back of the top of the box, and can regularly disinfect the inside of the box, which can effectively kill the floating bacteria of circulating air and humidified steam in the box, thereby effectively preventing contamination during cell culture.

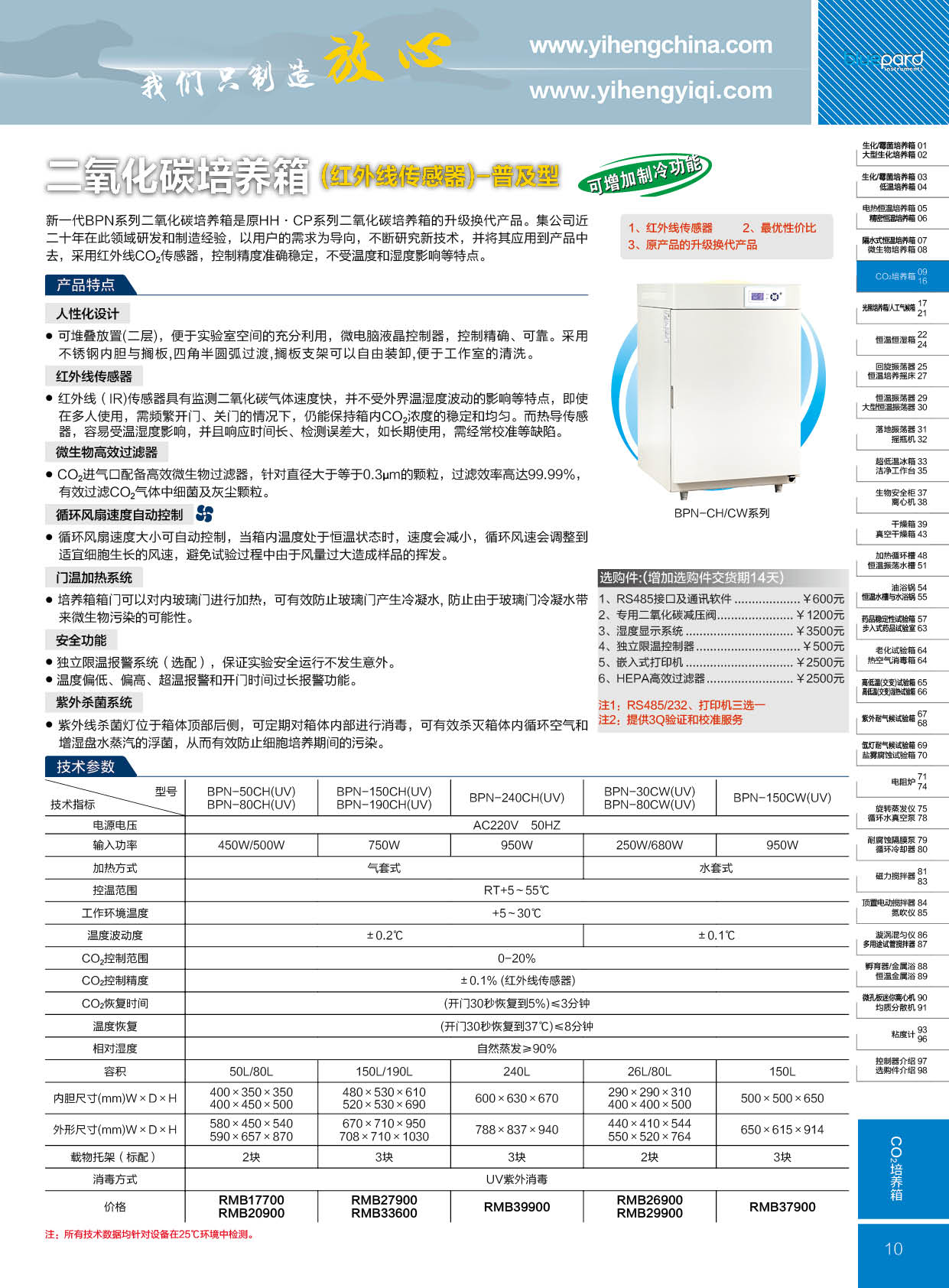

Technical parameters

Note: All technical data are for the device at 25 ℃Detection in the environment.

Optional parts: (Add to 7 days for optional parts delivery)

Note: RS485/232、Choose one of two printers

Provide 3 Q Verification and calibration services
