Zhengzhou Great Wall Science and Industry Industry and Trade Circulating Water Multi-purpose Vacuum Pump SHB-B95A_Recirculating Water Vacuum Pump

Recirculating Water Vacuum Pump

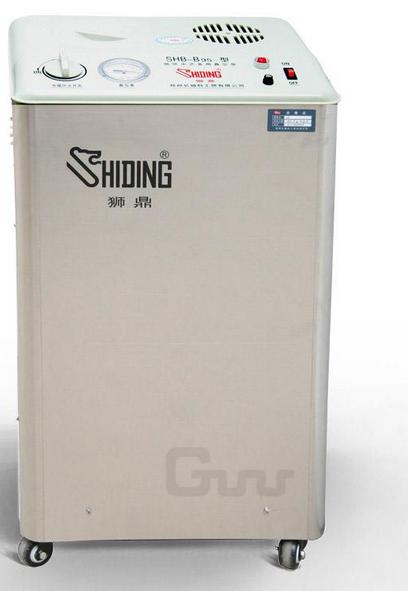

Zhengzhou Great Wall Science and Industry Industry and Trade Circulating Water Multi-purpose Vacuum Pump SHB-B95A

Price：￥3360

WeChat

Brand：Greatwall
Model：SHB-B95A
Inventory Status：Spot promotion/please call for consultation

Contact：: Tel：+86 010-51660436
Email：dnyc_sales@163.com

Details Documentation Related

●exist SHB-B Large air pump improved on the basis of the type.

●Five-taps can be used individually or in parallel.

●The air extraction volume is large after being connected in parallel with five-way pipes (optional), which can meet the needs of large rotary evaporators or reactors.

◆SHB-B95： Three-way, check valve, and air extraction nozzle are made of PP； The tank body is polyvinyl chloride ( PVC） Material, the shell is made of high-quality carbon structural steel cold-rolled plate, and the surface is electrostatically sprayed.

◆SHB-B95A： Stainless steel shell ( ANSI Standard), other SHB-B95。

model	SHB-B	SHB-B95	SHB-B95A	SHB-B88
power( W）	550	550	550	180
power supply( V/Hz）	220/50	220/50	220/50	220/50
flow( L/min）	100	100	100	80
Head ( m）	12	12	12	10
Maximum vacuum degree ( MPa）	0.098	0.098	0.098	0.098
Single head air extraction volume ( L/min）	10	10	10	10
Number of air pumps (pieces)	3	5	5	3
Safety features	Countercurrent prevention valve	Countercurrent prevention valve	Countercurrent prevention valve	Countercurrent prevention valve
Water tank volume ( L）	57	57	57	40
Water tank material	Polyvinyl chloride	Polyvinyl chloride	Polyvinyl chloride	Polyvinyl chloride
Casing material	Cold plate electrostatic spraying	Cold plate electrostatic spraying	1Cr18Ni9Ti	1Cr18Ni9Ti
Dimensions ( mm）	450L×350W×820H	450L×350W×820H	450L×350W×820H	350L×280W×880H
weight( kg）	36	36	36	26

Product Brochure

Product Sheet

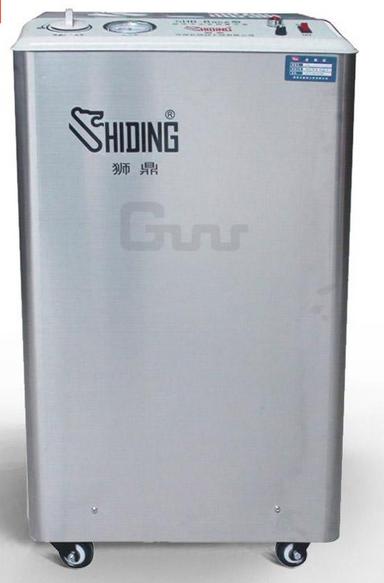

Zhengzhou Great Wall Science and Industry Industry and Trade Circulating Water Multi-purpose Vacuum Pump SHB-B95

Price：￥3180

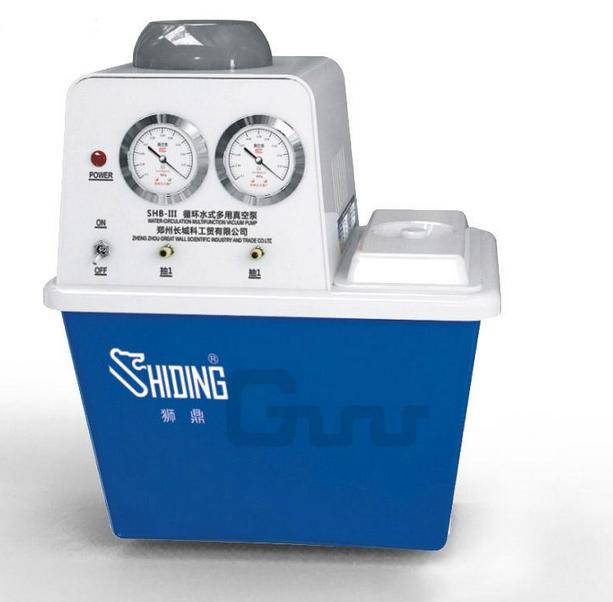

Zhengzhou Great Wall Science and Industry Industry and Trade Circulating Water Multi-purpose Vacuum Pump SHB-III

Price：￥1780

Zhengzhou Great Wall Science and Industry Industry and Trade Circulating Water Multi-purpose Vacuum Pump SHB-IIIA

Price：￥2380

Zhengzhou Great Wall Science and Industry Industry and Trade Circulating Water Multi-purpose Vacuum Pump SHB-IIIS

Price：￥1580

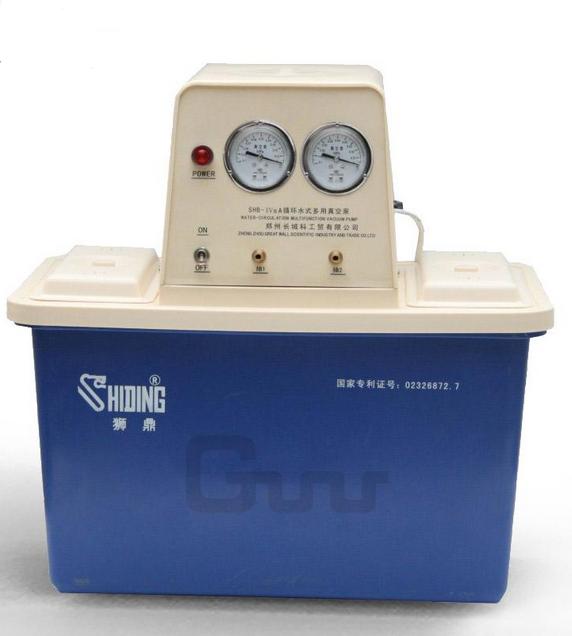

Zhengzhou Great Wall Science and Industry Industry and Trade Circulating Water Multi-purpose Vacuum Pump SHB-IV pair A
