Application scope:
The sterilizer series products are quick and reliable disinfection and sterilization equipment that uses pressure saturated steam to perform rapid and reliable disinfection and sterilization of products. They are suitable for medical and health care, scientific research, agriculture and other units. They disinfect and sterilize medical devices, dressings, glassware, solution culture medium, etc., and are ideal equipment.

Features:
Automatic control type
Patented technology: Hand-wheeled fast door safety chain device structure
Case, cylinder and net basket are all used SUS304 Made of material, acid resistant, alkali resistant and corrosion resistant
Intelligent automatic control of microcomputer
Pressure safety interlocking device, automatic overtemperature protection device
Self-swelling sealing ring, automatically emits cold air
High and low water level alarm, water cut off self-control
Self-leakage of overpressure
Internal circulation and exhaust type, with 3-liter gas collecting bottle
Automatic exhaust and buzzer reminder can be set up after sterilization, and automatic shutdown
Standard sample test hole
Three mode controls: a. Heating-sterilization-fast exhaust b. Heating-sterilization-slow exhaust c. Heating-sterilization-not exhaust
Optional: Printer
     Melting-insulation function (melting temperature 60 ~98℃，Time range 0 ~999minute； Insulation temperature 40 ~60℃，Time range 0 ~999minute)
★Medical type additional pressure protection device

Technical parameters:

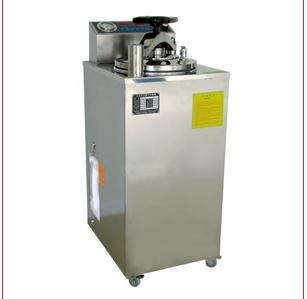

model: YXQ-LS-50A
Volume: 50 L
Power: 2.7 KW
Power supply: 220 V±10%  50Hz±2%
The highest job /Design temperature: 135 ℃/138℃
The highest job /Design pressure: 0.22 MPa/0.25MPa
Timing range (mins): 0-120
Cavity size (mm)：F300×680
Basket size (mm)：F280×210×3indivual
External dimensions (mm)：525×440×1080
