1

Hand-wheeled quick-opening door structure

2

Self-expanding sealing ring

3

304Stainless steel material, inner cavity thickness 3 mm

4

It has water cut protection device and water level detection and alarm function

5

Automatic control sterilization cycle procedure

6

Digital window LCD display working status

7

Pressure safety interlocking device

8

The sterilization selection mode for solid and liquid can be preset.

9

Automatic cooling air discharge and automatic exhaust function after sterilization

10

Automatic shutdown after sterilization is finished

11

Design temperature 138 ℃，Design pressure 0.24 Mpa

12

Overtemperature and overpressure alarm function, overpressure self-leakage

13

Sterilization temperature optional setting range 50 ℃-134℃

14

Adjustable sterilization time setting range 0-99 h

15

  Temperature deviation correction function

16

Three-stage exhaust mode, exhaust mode: full-discharge, micro-discharge, non-discharge

17

Design and useYearlimit ≥10Year

18

With castors at the bottom, easy to move

19

  Can add printing function

20

Volume: 100 liters, power supply voltage: 380 V， Power: 6 KW

21

Sterilization chamber size: φ500*550（mm）， Net basket size: 465 *230（mm）（2 Only)

22

Packaging size: 760 *800*1340（mm）， Net instrument size: 630 *700*1200（mm）

23

Gross weight: 188 KG， Wooden box packaging

24

Have a nationally stipulated special equipment pressure vessel certificate

 List of main components

Serial number

name

Specification

quantity

1

Pressure controller

1indivual

2

Solid-state relay

440V  40A

3indivual

3

Saw switch

1indivual

4

Air switch

1indivual

5

Electric heating tube

2000W

3branch

6

Spring safety valve

0.217-0.24Mpa

1indivual

7

Steam discharge valve

1indivual

8

Pressure gauge

0-0.4Mpa

1indivual

9

Silicone sealing ring

1indivual

10

Solenoid valve

2indivual

11

Temperature control probe

1indivual

Packing list

Serial number

Name

quantity

Remark

1

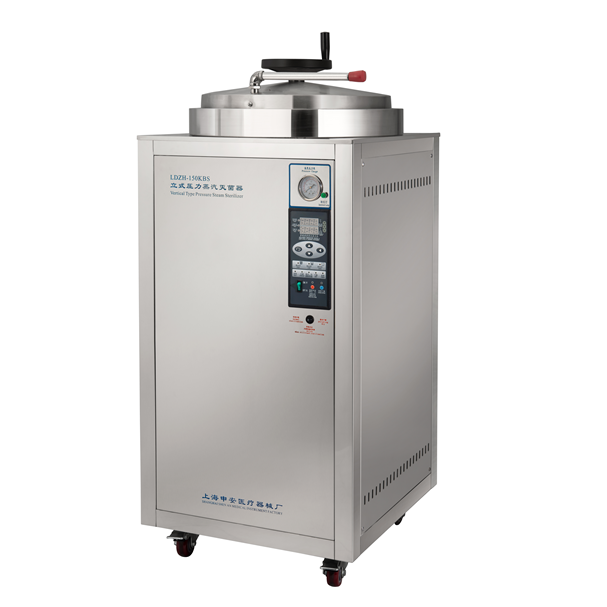

Vertical autoclave steam sterilizer

1tower

2

Instructions for use

1share

3

Quality tracking card

1share

4

Product Quality Certificate

1share

5

Net basket

2Only
