1

The pot cover opening and closing device adopts a multi-link synchronous telescopic structure of the pot cover and the cylinder, making the opening and closing of the pot cover and the cylinder flexible and lightweight, safe and reliable

2

The shell is made of high-quality temperature-resistant engineering and stainless steel material, and the sterilized pot body is made of high-quality stainless steel 304 material

3

Self-expanding sealing ring structure

4

Operating table adopts LCD The LCD window graphics and text display is displayed, and the function settings are all scrolling graphics and text selection. The entire sterilization stroke is subject to microcomputer graphics and text display and automatic control cycle program. The machine will be automatically shut down after the sterilization is completed (alarm).

5

The sterilization process has dynamic instructions, which facilitates users to observe the sterilization status.

6

The set temperature time is one-click operation, and you can quickly and clearly make the required choices based on different sterilized items.

7

It has air-cooled fast cooling device to ensure rapid cooling of the pot body at the end of sterilization, thereby shortening the opening time of the pot lid

8

It has the appointment function of sterilization time, which is convenient for users to turn on the computer regularly

9

Fully automatic control, automatic fault detection and judgment system

10

It has automatic cooling air discharge function

11

It has a safety interlocking device, and adopts a safety interlocking structure that interacts between electronics and machinery to ensure that the cover is automatically locked when there is pressure, avoiding insecurity caused by misoperation.

12

Double-suited protection system with mechanical safety pressure relief valve and electrically controlled overvoltage protection device

13

It has water cut protection and anti-dry burning and leakage protection system

14

Temperature deviation correction function

15

Overtemperature and overpressure alarm function, overpressure self-exhausting and exhaust

16

With castors at the bottom, easy to move

17

Standard cooling fan: The sterilization can quickly reduce the cavity temperature

18

Have a verification interface

19

Inner cavity thickness ≥2mm

20

Design and useYearlimit ≥10Year

21

Sterilization temperature optional setting range 50 ℃-134℃

22

Adjustable sterilization time setting range 0-99 h

23

Can add printing function to print sterilization date, temperature, time and pressure in real time

24

Volume: 60 liters, power supply voltage: 220 V/50Hz  Power: 3.5 KW

25

Sterilization chamber size: φ350×550（mm）， Gross weight: 98 Kg, Net weight: 96 Kg

26

Net basket *1Only (diameter *high: φ335*360mm）

27

Packaging size: 790 *670*1160（mm）， Net instrument size: 570 *690*1020（mm）

28

Design pressure of this equipment: 0.24 Mpa ， Rated working pressure: 0.217 Mpa

29

Have a nationally stipulated special equipment pressure vessel certificate

List of main components

Serial number

name

Specification

quantity

1

Pressure controller

1indivual

2

Temperature control probe

PT100

1indivual

3

Solid-state relay

440V  40A

1indivual

4

Air switch

250V  15A

1indivual

5

Electric heating tube

3500W

1branch

6

Spring safety valve

0.217-0.24Mpa

1indivual

7

Steam discharge valve

0.25Mpa

1indivual

8

Pressure gauge

0-0.4Mpa

1indivual

9

Sealing ring

Silicone　

1indivual

10

fan

1indivual

11

Drainage, gas corrugated pipe

Metal hose

2root

12

tool

1set

Packing list

Serial number

Name

quantity

1

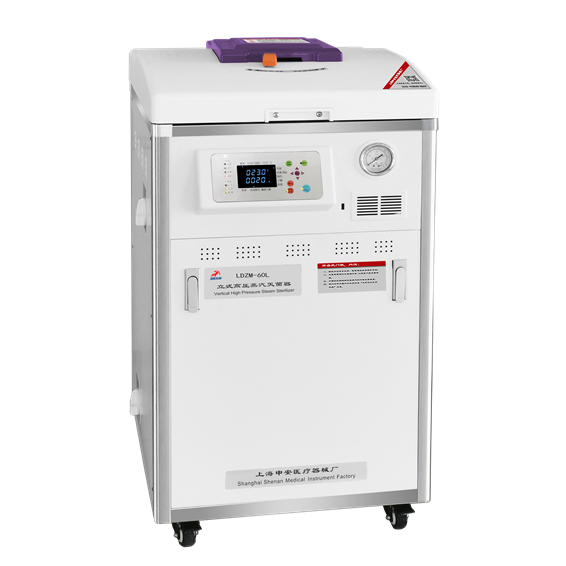

Vertical autoclave steam sterilizer

1tower

2

Product Instructions

1share

3

Product quality tracking card

1share

4

Product Quality Certificate

1share

5

Netlan

1Only
