1

The pot cover opening and closing device adopts a multi-link synchronous telescopic structure of the pot cover and the cylinder, making the opening and closing of the pot cover and the cylinder flexible and lightweight, safe and reliable

2

The shell is made of high-quality temperature-resistant engineering and stainless steel material, and the sterilized pot body is made of 304 stainless steel material

3

Self-expanding sealing ring structure

4

use LED Digital display operation cycle program, automatically shut down after sterilization (alarm)

5

The sterilization process has dynamic instructions, which facilitates users to observe the sterilization status.

6

The set temperature time is one-click operation, and you can quickly and clearly make the required choices based on different sterilized items.

7

It has air-cooled fast cooling device to ensure rapid cooling of the pot body at the end of sterilization, thereby shortening the opening time of the pot lid

8

It has the appointment function of sterilization time, which is convenient for users to turn on the computer regularly

9

Fully automatic control, automatic fault detection and judgment system

10

Automatic cooling air discharge function

11

It has a safety interlocking device, and adopts a safety interlocking structure that interacts between electronics and machinery to ensure that the cover is automatically locked when there is pressure, avoiding insecurity caused by misoperation.

12

Double-suited protection system with mechanical safety pressure relief valve and electrically controlled overvoltage protection device

13

It has water cut protection and anti-dry burning and leakage protection system

14

Temperature deviation correction function

15

Overtemperature and overpressure alarm function, overpressure self-exhausting and exhaust

16

With castors at the bottom, easy to move

17

Standard cooling fan: The sterilization can quickly reduce the cavity temperature

18

Have a verification interface

19

Inner cavity thickness ≥22mm

20

Design and useYearlimit ≥10Year

21

Sterilization temperature optional setting range 50 ℃-134℃

22

Adjustable sterilization time setting range 0-99 h

23

Can add printing function to print sterilization date, temperature, time and pressure in real time

24

Volume: 30 liters, power supply voltage: 220 V/50Hz  Power: 3.5 KW

25

Sterilization chamber size: φ350×400（mm）， Gross weight: 92 Kg, Net weight: 90 Kg

26

Net basket *1Only (diameter *high: φ335*190mm）

27

Packaging size: 790 *670*1160（mm）， Net instrument size: 550 *620*1070（mm）

28

Design pressure of this equipment: 0.24 Mpa ， Rated working pressure: 0.217 Mpa

29

Have a nationally stipulated special equipment pressure vessel certificate

List of main components

Serial number

name

Specification

quantity

1

Pressure controller

1indivual

2

Temperature control probe

PT100

1indivual

3

Solid-state relay

440V  40A

1indivual

4

Air switch

250V  15A

1indivual

5

Electric heating tube

3500W

1branch

6

Spring safety valve

0.217-0.24Mpa

1indivual

7

Steam discharge valve

0.25Mpa

1indivual

8

Pressure gauge

0-0.4Mpa

1indivual

9

Sealing ring

Silicone　

1indivual

10

fan

1indivual

11

Drainage, gas corrugated pipe

Metal hose

2root

12

tool

1set

Packing list

Serial number

Name

quantity

1

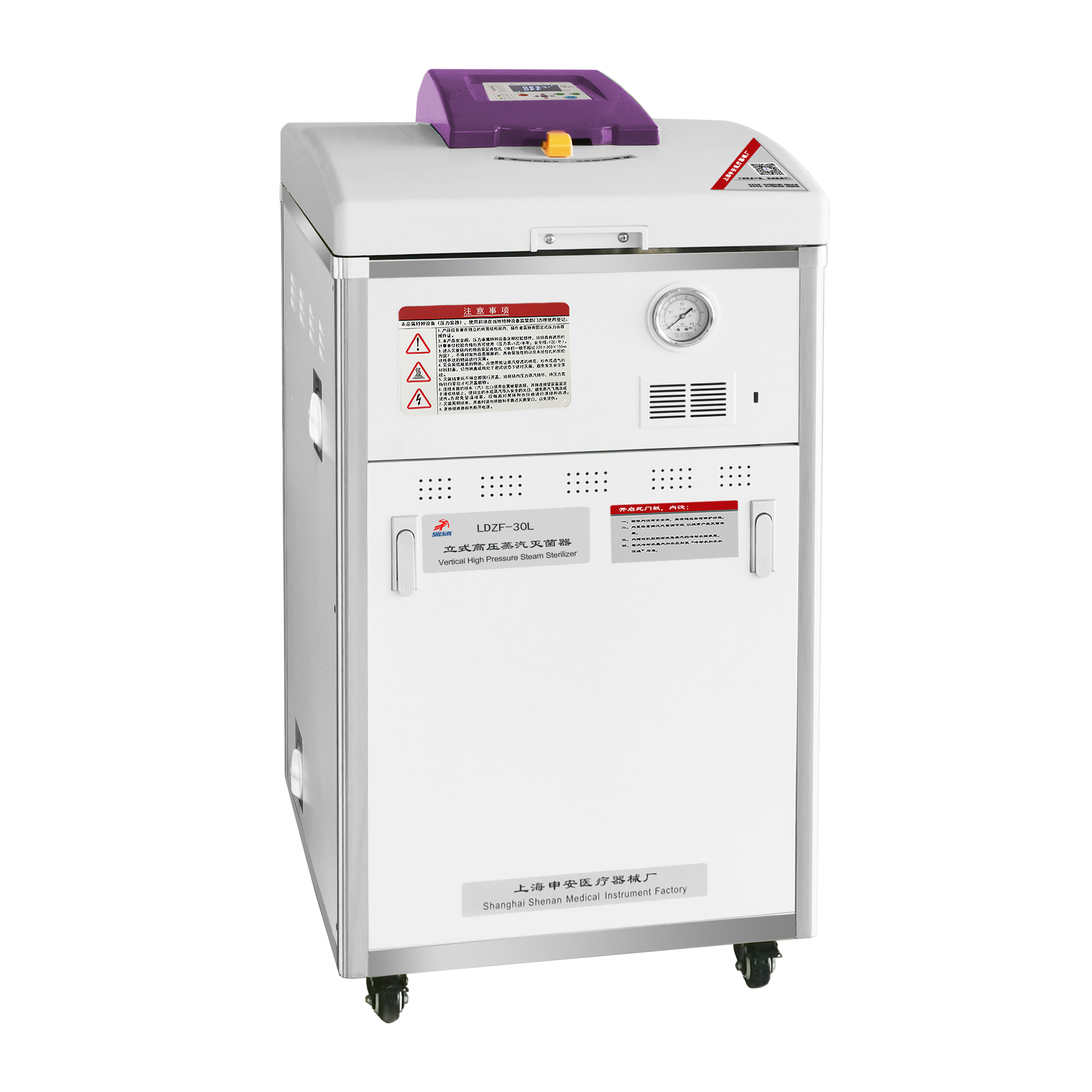

Vertical autoclave steam sterilizer

1tower

2

Product Instructions

1share

3

Product quality tracking card

1share

4

Product Quality Certificate

1share

5

Netlan

1Only
