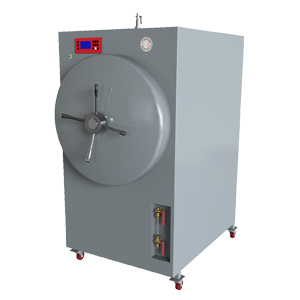

Product name: Horizontal circular sterilizer (spoke structure)
model: BXW series

Performance Features:

☆The inner chamber of the sterilizer is made of high-quality stainless steel material and is welded by argon arc, making it durable.
☆The entire sterilization process is automatically controlled by microcomputer, with high degree of automation and an alarm will be automatically alerted if there is a fault.
☆The display screen displays parameters such as sterilization stage and temperature time, so that users can understand the operation status.
☆Seal doors adopt safety interlocking devices that comply with regulations
（1）When the door is not closed and locked, the sterilization procedure cannot be started.
（2）When there is pressure in the inner chamber, the locking device will start to prevent the handwheel from rotating and ensure user safety.
☆The sealing ring adopts a self-expanding structure design, which has the characteristics of good sealing effect and long service life.
☆The sterilizer comes with a steam generator and a water pump, and the device has the following functions:
（1）The automatic water inlet and water replenishment function of the water pump is added to ensure that the water level in the steam generator is controlled within a reasonable range.
（2）When the water level in the steam generator reaches the lowest water level, the power supply of the electric heating tube can be cut off and an alarm will be prompted (under sterilization).
（3）The pressure controller is used to control the pressure in the steam generator, and a safety valve is used to protect it after overpressure.
☆The exhaust method after sterilization can be selected to meet the pressure relief requirements of different types of substances after sterilization.
☆PID The temperature control function can automatically correct the heating control parameters through selection to prevent temperature overshoot.
Note:  G The type is dry type. Based on the above performance characteristics, water ring vacuum pump and dry electric heating pipe device have been added, and the drying effect meets relevant standards.

Optional: printer, stainless steel shell
