1

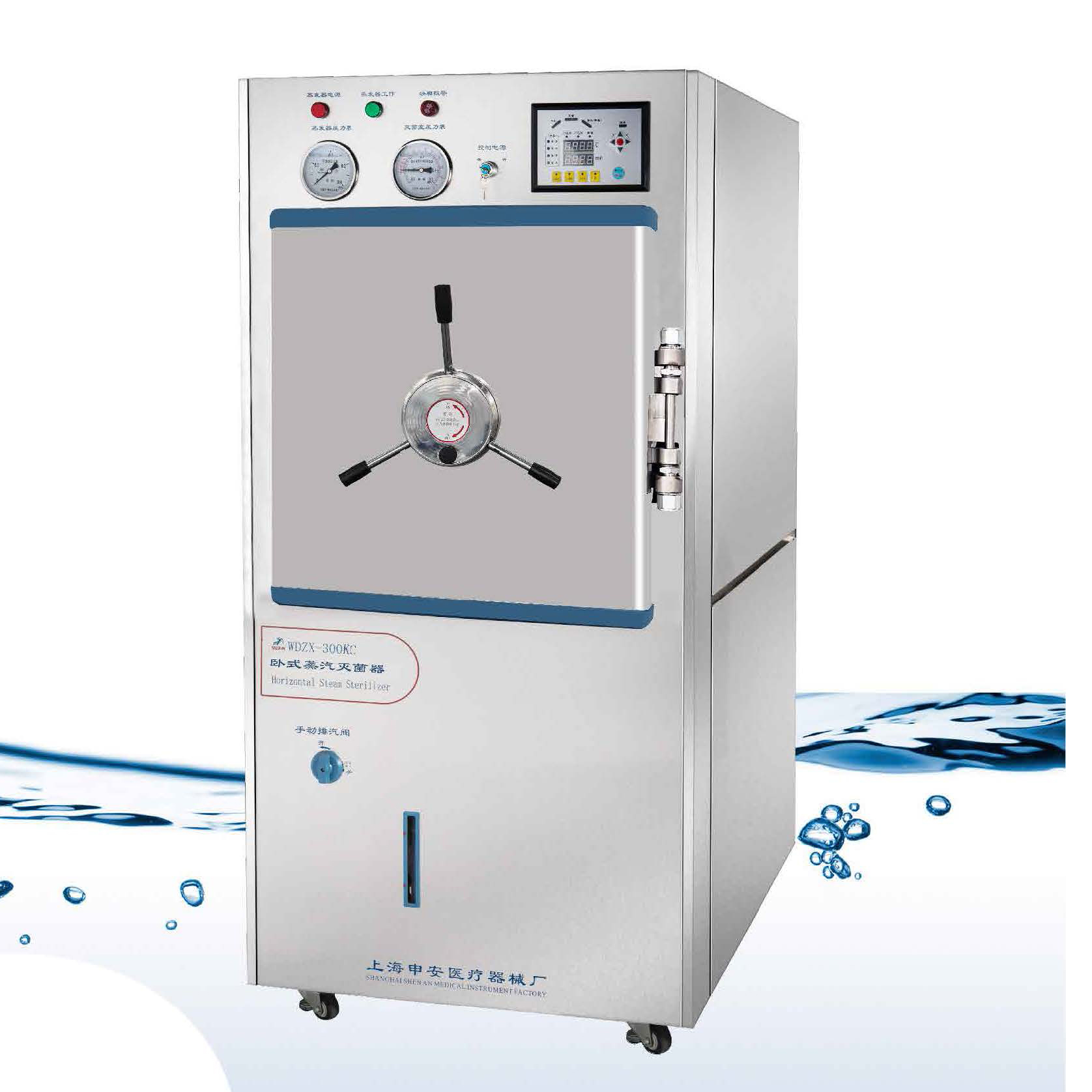

Hand-wheeled quick-opening door structure

2

304Stainless steel material, self-expanding sealing ring

3

Automatically controlled sterilization cycle program, pressure safety interlocking interactive device

4

Digital window LCD display working status, double-scale reading pressure gauge

5

Overpressure self-leakage 0.145-0.24 Mpa

6

Sterilization temperature optional setting range 50 ℃-134℃

7

Adjustable sterilization time setting range 0-99 h

8

With water cut protection device

9

Automatic shutdown after sterilization is finished

10

Can add printing function

11

Volume: 200 liters, power supply voltage: 380 V， Power: 9 KW

12

Sterilization chamber size: φ500*1120（mm）

13

Packaging size: 1640 *830*1800（mm）， Net instrument size: 1550 *720*1640（mm）

14

Gross weight: 300 KG， Thickened carton

15

Have the nationally stipulated special equipment pressure vessel certificate and medical device certificate

 List of main components

Serial number

name

Specification

quantity

1

Pressure temperature switch

High and low pressure

1indivual

2

Solid-state relay

440V  40A

3indivual

3

         Circuit breaker protector

1indivual

4

Electric heating tube

3000W

3branch

5

Spring safety valve

0.217-0.24Mpa

2indivual

6

Steam discharge valve

1indivual

7

Pressure gauge

2indivual

8

Silicone sealing ring

1indivual

Packing list

Serial number

Name

quantity

Remark

1

Pressure steam sterilizer

1tower

2

Instructions for use

1share

3

Quality tracking card

1share

4

Pressure vessel monitoring certificate

2share

5

Net basket

2Only
