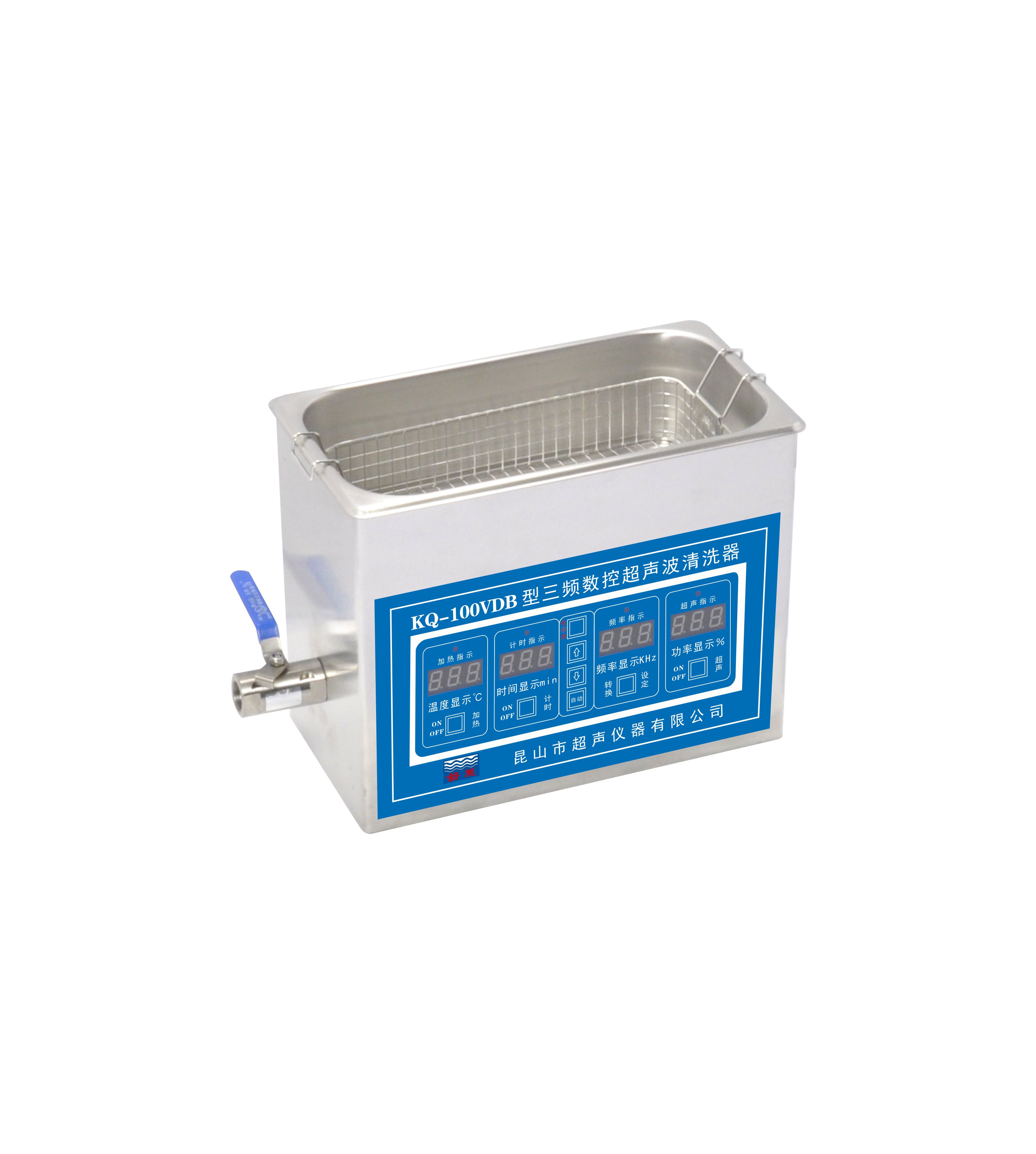

Kunshan Shumei Ultrasonic Cleaner KQ-100VDB Three frequency

Product Features

1、The cleaner is operated by microcontroller software

2、The cleaner sound-down cover, shell and cleaning tank are all made of high-quality stainless steel

3、Digital display overtemperature, overvoltage, overcurrent, low water level, no solution protection indication

4、Digital memory, setting display ultrasonic working time, ultrasonic power, ultrasonic frequency, automatic conversion time of ultrasonic frequency, liquid inlet level (and actual liquid level), heating temperature (and actual temperature)

5、The cleaner circuit has automatic frequency sweep function, which can generate continuous pulse jets, making the cleaning effect more obvious and the work is more stable.

6、The cleaner circuit and device are upgraded and matched, with high power conversion rate and low reactive power loss

7、Three combinations of ultrasonic frequencies are available in 20 /40/60KHz、28/45/80KHz、28/45/100KHz、45/80/100KHz

Technical parameters

1、model: KQ-100VDB

2、Dimensions: 260 *160*310mm

3、Inner slot size: 230 *140*100mm

4、Capacity: 3 L

5、Ultrasonic frequency: 45 /80/100KHz

6、Ultrasonic frequency can be replaced

7、Frequency conversion time adjustable: 1-999 S

8、Ultrasonic power: 100 W

9、Ultrasonic power adjustable range: 40-100%

10、Heating power: 200 W

11、Temperature setting range: Room temperature-80 ℃

12、Working hours are adjustable: 1-480 min

13、Other configurations: manual drainage, cleaning net basket, 220 V/50Hz power supply
