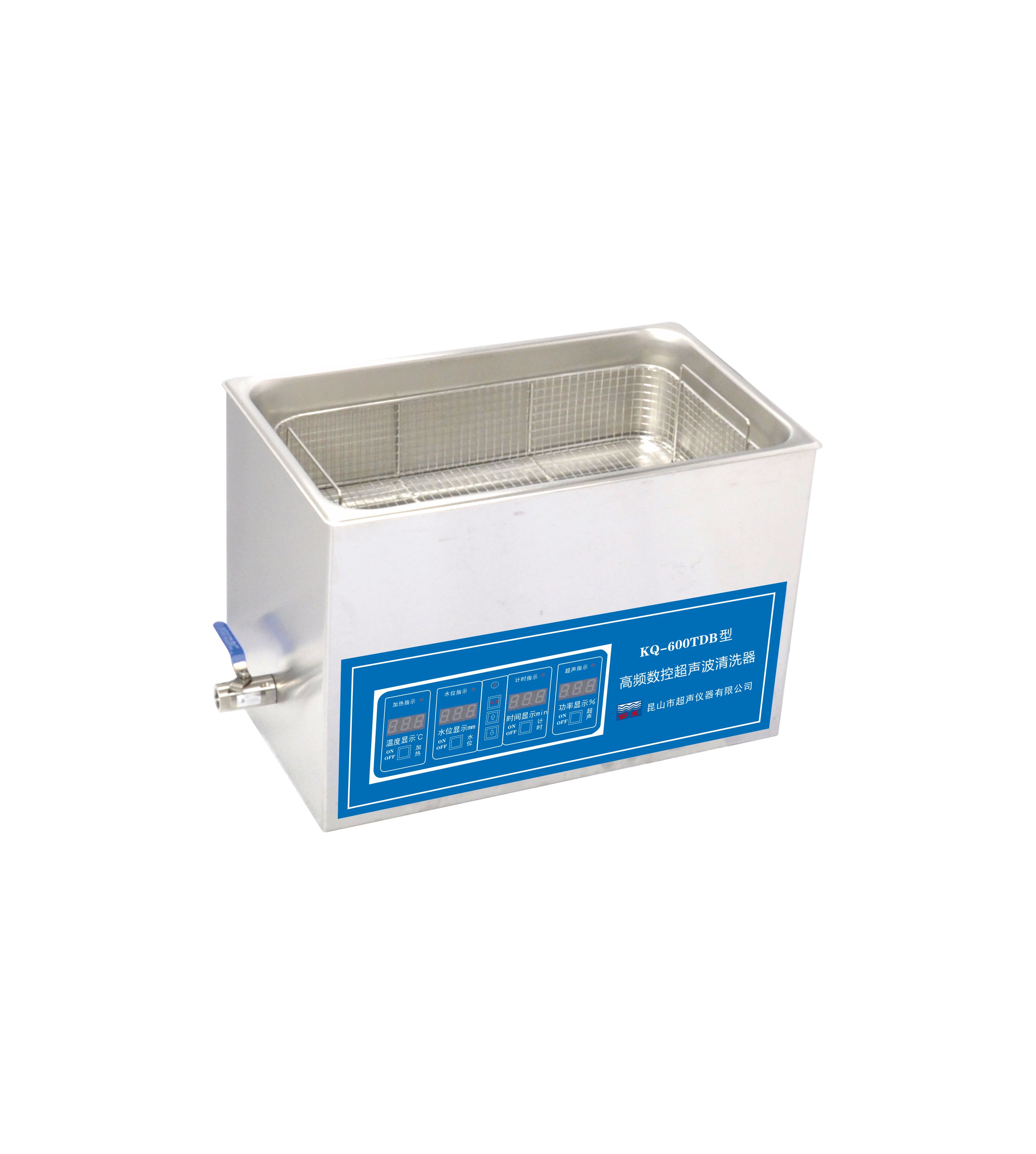

Kunshan Shumei Ultrasonic Cleaner KQ-600TDB

Product Features

1、The cleaner is operated by microcontroller software

2、The main material of the cleaner is 304 high-quality stainless steel

3、Digital display overtemperature, overvoltage, overcurrent, low water level, no solution protection indication

4、Digital memory, setting display ultrasonic working time, ultrasonic power, liquid inlet level (and actual level), heating temperature (and actual temperature)

5、The cleaner circuit has automatic frequency sweep function, which can generate continuous pulse jets, making the cleaning effect more obvious and the work is more stable.

6、The cleaner circuit and device are upgraded and matched, with high power conversion rate and low reactive power loss

7、The ultrasonic frequency of high-frequency product transducers is (80 KHz/), the ultrasonic frequency of conventional transducers is (40 KHz/indivual)

8、Available single ultrasonic frequency has 50 KHz、60KHz、68KHz、80KHz、100KHz、135KHz American ultrasonic cleaner KQ-600TDB

Technical parameters

1、Dimensions: 530 *320*365mm

2、Inner slot size: 500 *300*150mm

3、Capacity: 22.5 L

4、Ultrasonic frequency: 80 KHz

5、Ultrasonic frequency can be replaced

6、Ultrasonic power: 600 W

7、Ultrasonic power adjustable range: 40-100%

8、Water level display: 30-120 mm

9、Heating power: 1000 W

10、Temperature setting range: Room temperature-80 ℃

11、Working hours are adjustable: 1-480 min

12、Other configurations: manual drainage, cleaning net basket, 220 V/50Hz power supply
