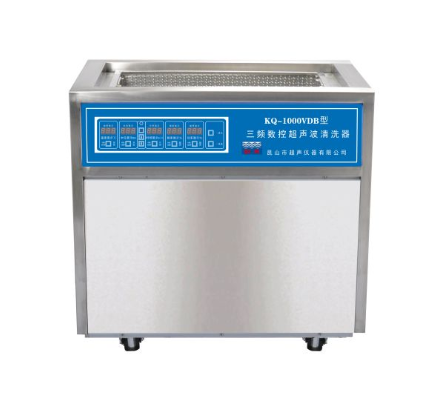

Kunshan Shumei Ultrasonic Cleaner KQ-1000VDB Three frequency

Product Features

1、The cleaner is operated by microcontroller software

2、The main material of the cleaner is 304 high-quality stainless steel

3、Digital display product factory date and cumulative working time

4、Digital display overtemperature, overvoltage, overcurrent, low water level protection indicators

5、Digital display, memory, setting ultrasound time, power, temperature, liquid level

6、Digital display, memory, setting ultrasonic frequency and frequency conversion time

7、Washer circuits and devices are fully upgraded and matched

8、The cleaner circuit has automatic frequency sweep function

9、Standard three-frequency transducer power 50 W/45 /80/100KHz

Technical parameters

1、model: KQ-1000VDB

2、Dimensions: 800 *500*800mm

3、Inner slot size: 600 *300*400mm

4、Capacity: 72 L

5、Ultrasonic frequency: 45 /80/100KHz

6、Frequency conversion time adjustable: 1-999

7、Optional ultrasonic frequency: 20 /40/60、28/45/80、28/45/100、45/80/100KHz

8、Ultrasonic power: 1000 W

9、Ultrasonic power adjustable range: 40-100%

10、Water level display: 1-300 mm

11、Heating power: 3000 W

12、Temperature setting range: 10-80 ℃

13、Working hours are adjustable: 1-480 min

14、Other configurations: electronically controlled water inlet and drainage, stainless steel mesh basket, 380 V/AC Three-phase five-wire power supply
