Product/Brand

Biosafety Cabinet

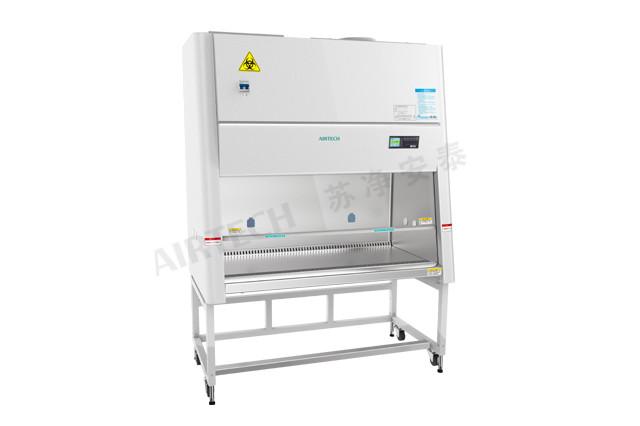

Su Jing Antai BSC-1304ⅡA2 Secondary biosafety cabinet
Price:¥51000

WeChat

Brand:AIRTECH
Model:BSC-1304ⅡA2
Inventory Status:Spot promotion/please call for consultation
Contact:
Tel:+86 010-51660436
Email:dnyc_sales@163.com
Details Documentation Related

Product Introduction

◆Color HD LCD The human-computer dialogue interface shows the operating status of fans, filters, etc. in real time and provides alarm functions, filter life display, etc.

◆Energy saving is more than 40% year-on-year. At the same time, the use of constant air volume fan and intelligent air volume compensation system ensure that the air volume change is less than 10% when the resistance of the high-efficiency filter increases by 50%, making it safer to use.

◆The front window glass can be cleaned in full inside and outside, completely solving the problem of internal inability to clean and leaving no hygienic blind spots.

◆Mobile operating tabletop, equipped with stainless steel lifting handles and support frame, making cleaning and maintenance more convenient.

◆Splash-proof safety sockets are installed on both sides of the inner wall of the work area, and two water and air valve connecting channels are installed on the left and right sides, making it more flexible to use.

◆Adjustment feet without exposed threads.

◆The front window glass can be cleaned in full inside and outside, completely solving the problem of internal inability to clean and leaving no hygienic blind spots.

◆Mobile operating tabletop, equipped with stainless steel lifting handles and support frame, making cleaning and maintenance more convenient.

◆Splash-proof safety sockets are installed on both sides of the inner wall of the work area, and two water and air valve connecting channels are installed on the left and right sides, making it more flexible to use.

◆Adjustment feet without exposed threads.

◆Adopt the United States HV The company's high efficiency, low pressure drop, high strength and low boron content air filter elements reduce pressure drop while extending the service life of the filter.

◆Both the delivery and exhaust filters have patented "leakage-proof" technology to ensure the cleanliness of the air ISO4 Level (Level 10).

◆ULPA The filter has a 99.9995% retention efficiency for solid particles with a diameter of more than 0.12 microns.


model /parameter

BSC-1004IIA2

BSC-1304IIA2

BSC-1604IIA2

BSC-1804IIA2

Air cleanliness

ULPA:ISO4 class

Filter level /Filtration efficiency

ULPA:≥99.9995%,@0.12μm

Decreased wind speed (m/s)

0.35

0.33

Inflow speed (m/s)

0.55

0.53

noise (dB(A))

≤65

power supply

AC220V,1φ,50Hz

Cross-infection protection

A. Total number of colonies in impact sampler ≤10CFU./Second-rate

B. Total number of colonies in slit sampler ≤5CFU./Second-rate

Personnel protection

Total colony count ≤5CFU./Second-rate

Tested product protection

Total colony count ≤2CFU./Second-rate

Rated power (Included with spare socket )(kw)

1.65

1.75

1.85

1.85

weight (Kg)

260

300

360

400

Workspace size (W*D*H)(mm)

1004*630*630

1304*630*630

1604*630*630

1804*630*630

External dimensions (W*D*H)(mm)

1200*795*2050

1500*795*2050

1800*795*2050

2000*795*2050

Lighting specifications (W)and quantity

24.5*①

31*①

36*①

36*①

UV lamp specifications (W)and quantity

25*①

30*①

40*①

40*①

Illumination (Lx)

≥900

Exhaust direction

Eject
