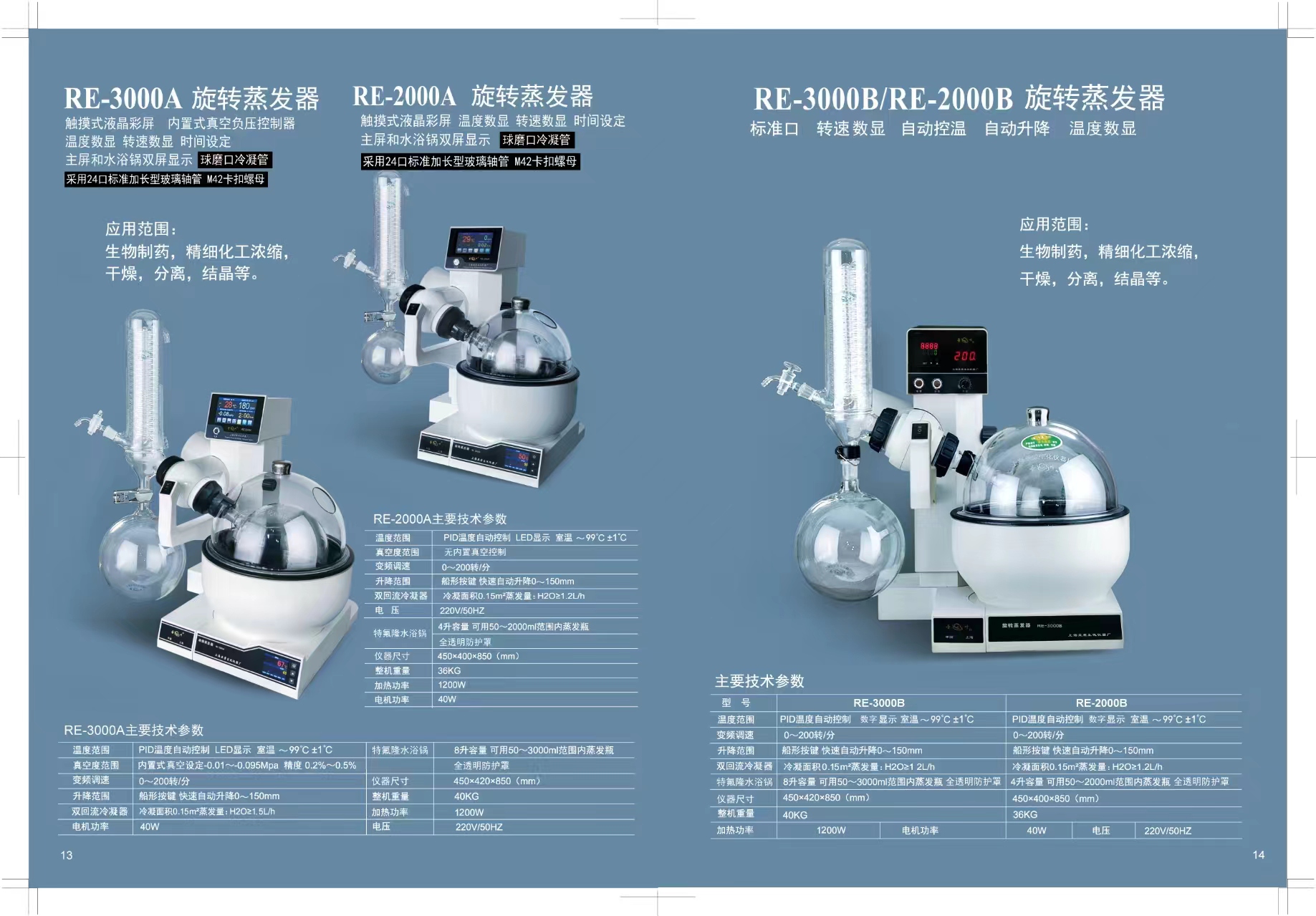

Shanghai Yarong Rotary Evaporator RE-3000A

Product Description

The rotary evaporator uses a rotary evaporation bottle (flask) to increase the evaporation area and place it in a water bath under reduced pressure while rotating and heating it, so that the solution in the bottle can diffuse and evaporate. It is an ideal essential basic instrument for the chemical industry, pharmaceutical industry, universities and scientific research laboratories for manufacturing and analysis experiments, such as concentration, drying, and recycling.

Product Features

1、Features: Teflon water bath pot, fully transparent protective cover, thermal insulation, energy-saving, explosion-proof, splash-proof, rust-proof, and pollution-proof.

2、Rocker type button: The upper lower pressure main unit of the rocker rises, and the lower pressure main unit of the rocker falls.

3、Ring nut: Automatically fasten the rotating bottle in a rotational manner, and reversely push and quickly unload the rotating bottle.

4、Tetrafluoroethylene pipe and gear flow ring.

5、Use the knob for stepless speed regulation.

6、When adjusting the angle of the host: use the knob to release or lock.

7、Factory standard collection bottle ball port 3 L, 1L 1 each, 24-hole 3 rotating bottle L,2L,1L

8、Host: Sword type button, fast automatic lifting, 0-150 mm

9、Speed: Speed ​​digital display 20-200 rpm /40 W

10、Heating pot: Teflon composite pot, fully enclosed heater, power 1.4 KW

11、Temperature range: automatic temperature control, digital display of water temperature, room temperature -90 degrees

12、Total power: 1.5 KW, Voltage:-220 V50HZ

13、Cooler: Vertical, high-temperature resistant high-quality glass exquisite double reflux integrated ball mill condensation tube with ball mill collection bottle for rapid loading and unloading.

14、Feeder: Valve type feeding tube socket tetrafluoroethylene pipe

15、Sealing ring: Fluoroelastomer vacuum sealing gasket

Technical parameters
