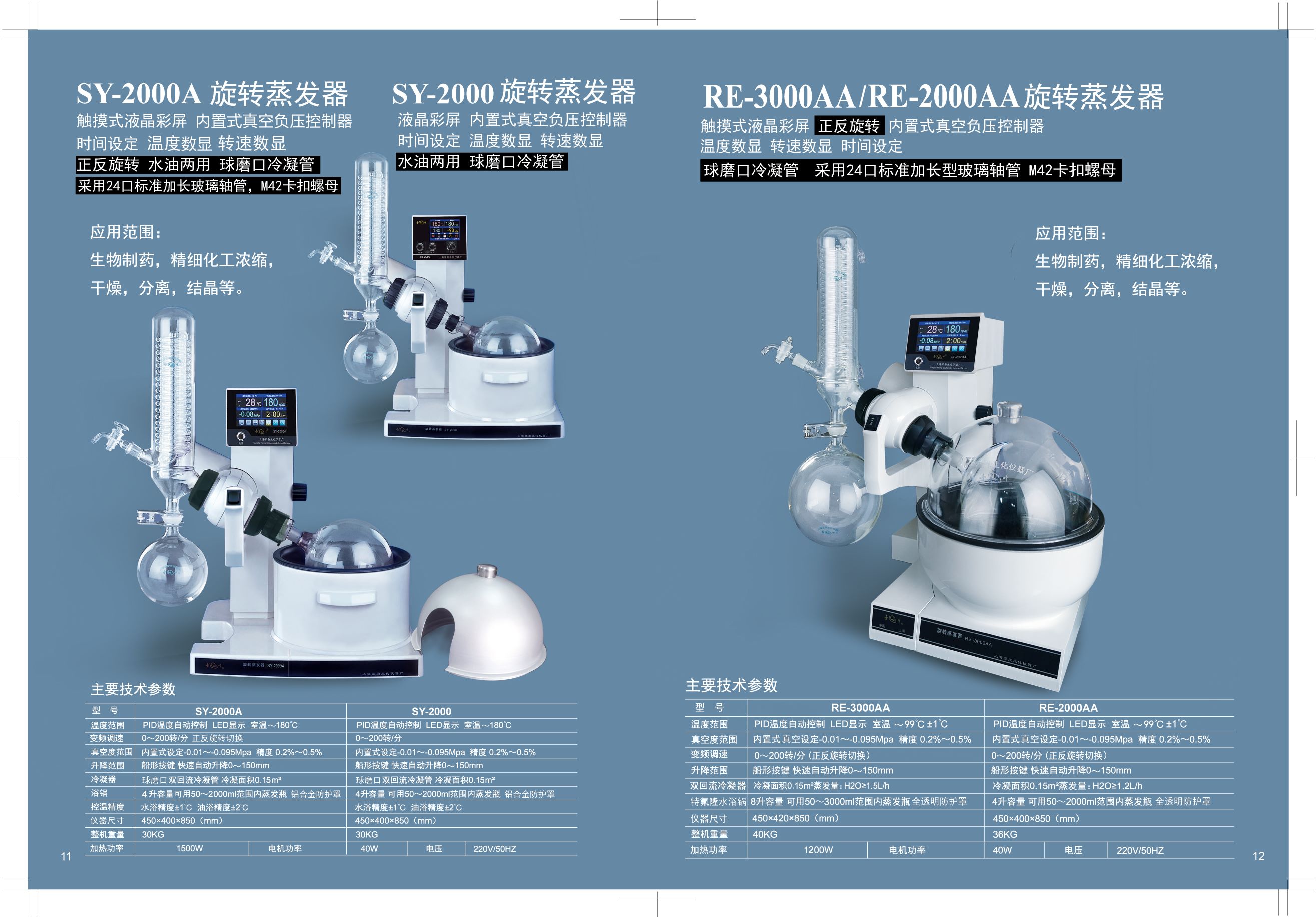

SY-2000A Water and oil dual-purpose rotary evaporator

Features:

Touch-type display screen, click on the menu to display more data in one screen, simple and fast.

PID Intelligent control unit, accurately set the temperature.

Speed: frequency conversion control, synchronous transmission.

Steering: This machine has the function of forward and reverse rotation, which can set the steering change time and improve the drying of powdered samples.

Vacuum: It can set the display of the target negative pressure value of automatic control, a built-in gas circuit control system, and control the start and stop of the vacuum pump.

Time: The set timing function of this machine will automatically stop when it reaches the predetermined time and the manual function can be cut off in real time to restore long-term operation.

Lifting: Adopt rail-type combination automatic lifting, stable and reliable, low noise, limit protection without stamping.

Cooler: Use high-temperature resistant high-quality glass double reflux integrated (ball grinding) standard port condensation tube to increase cooling area and improve recovery rate.

Professional sealing system design, high elasticity PTFE The material has the characteristics of high temperature resistance, corrosion resistance, and durability.

·Bath pot: The shell is made of flame retardant material, equipped with overheating protection power failure device, built-in water bath, dual-purpose Teflon heating pot, aluminum alloy protective cover, thermal insulation, energy saving, pollution-proof, safe and reliable. ,

The original air duct-type heat dissipation system balances the temperature to prevent accidents.

Feeding: Use valve type to continuously feed without stopping, and under negative pressure.

Cone grinding bottle lock bottle withdrawal device: Stable locking cone grinding mouth connection is convenient for cone grinding bottle withdrawal (with ring nut).

Main technical parameters:

Temperature range: PID Automatic temperature control LED Show room temperature －180℃

Frequency conversion speed regulation: 10-200 rpm ／(Forward and reverse rotation switching)

Vacuum degree range: built-in setting －0.01~-0.095Mpa Accuracy 0.2% ~0.5%

Lifting range: Ship-shaped buttons quickly and automatically lift 0 ~150mm

Condenser: Condensation area of ​​double reflux condenser tube 0.15 ㎡

Bath pot: 4 liter capacity available for 50 ~2000ml Evaporation bottle within range

Temperature control accuracy: water bath accuracy ±1℃ Oil bath accuracy ±2℃

Heating power: 1500 W

Motor power: 80 W

Voltage: 220 V/50HZ

Dimensions: 450 x400x850(mm)

The weight of the whole machine: 30 KG
